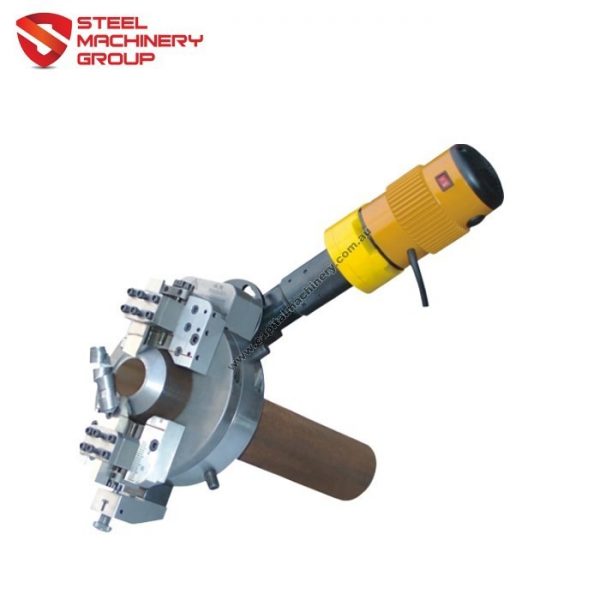

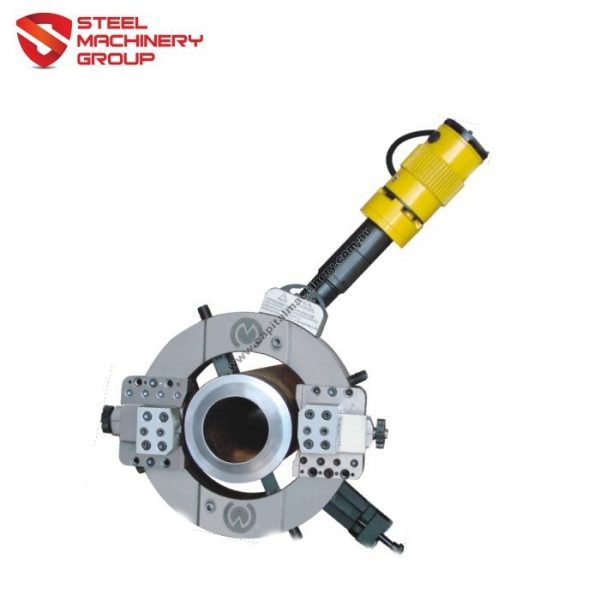

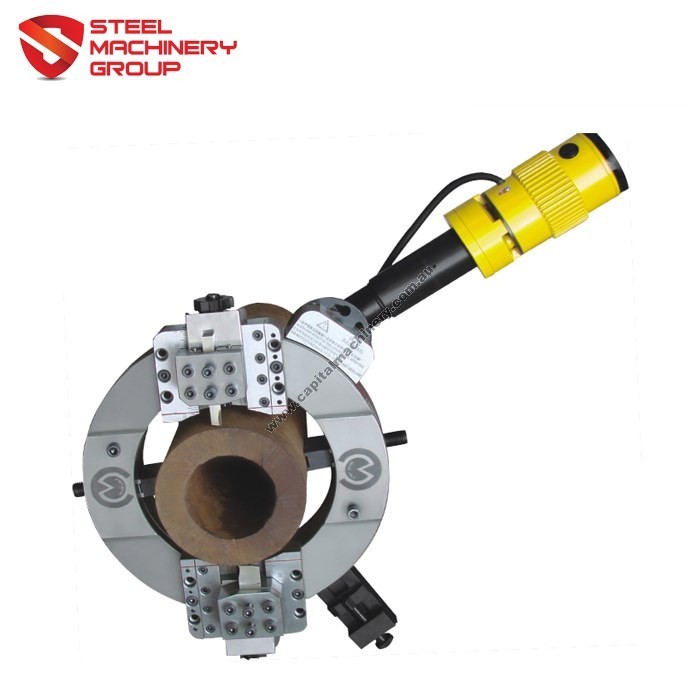

SMG OD-Mounted Electric Pipe Cutting and Beveling Machine

SMG-230-OCE OD-Mounted Electric Pipe Cutting and Beveling Machine are able to perform simultaneous cutting and beveling operations with ease. It features a lightweight structure for easier use and suitable for complicated work sites. Steel Machinery Group offers top-quality brands for cutting and beveling machinery. Our products are engineered to work at maximum performance and easy maintenance.

$ 4,846.00 AUD

This series is portable od-mounted frame type pipe cold cutting and beveling machine with advantages of lightweight, minimal radial space, easy operation and so on. Split frame design can separate mount the od of the in-line pipe for strong and stable clamping to process cutting and beveling simultaneously.

Specifications

Power Supply: 220-240v 1 ph 50-60 HZ

Motor Power: 1.5-2KW

Model No. Working Range Wall Thickness Rotation Speed
SMG-89-OCE φ 25-89 3/4‘’-3‘’ ≤35mm 42 r/min
SMG-168-OCE φ50-168 2‘’-6‘’ ≤35mm 18 r/min
SMG-230-OCE φ80-230 3‘’-8‘’ ≤35mm 15 r/min
SMG-275-OCE φ125-275 5‘’-10‘’ ≤35mm 14 r/min
SMG-305-OCE φ150-305 6‘’-10‘’ ≤35mm 13 r/min
SMG-325-OCE φ168-325 6‘’-12‘’ ≤35mm 13 r/min
SMG-377-OCE φ219-377 8‘’-14‘’ ≤35mm 12 r/min
SMG-426-OCE φ273-426 10‘’-16‘’ ≤35mm 12 r/min
SMG-457-OCE φ300-457 12‘’-18‘’ ≤35mm 12 r/min
SMG-508-OCE φ355-508 14‘’-20‘’ ≤35mm 12 r/min
SMG-560-OCE φ400-560 16‘’-22‘’ ≤35mm 12 r/min
SMG-610-OCE φ457-610 18‘’-24‘’ ≤35mm 11 r/min
SMG-630-OCE φ480-630 20‘’-24‘’ ≤35mm 11 r/min
SMG-660-OCE φ508-660 20‘’-26‘’ ≤35mm 11 r/min
SMG-715-OCE φ560-715 22‘’-28‘’ ≤35mm 11 r/min
SMG-762-OCE φ600-762 24‘’-30‘’ ≤35mm 11 r/min
SMG-830-OCE φ660-813 26‘’-32‘’ ≤35mm 10 r/min
SMG-914-OCE φ762-914 30‘’-36‘’ ≤35mm 10 r/min
SMG-1066-OCE φ914-1066 36‘’-42‘’ ≤35mm 10 r/min
SMG-1230-OCE φ1066-1230 42‘’-48‘’ ≤35mm 10 r/min

Note: Standard machine packaging including :

  • 2 pcs cutter
  • 2 pcs of bevel tool
  • Tools
  • Operation Manual

Features

  1. Low axial and radial clearance lightweight suitable for working at a narrow and complicated site
  2. Split frame design can separate to 2 half, easy to process when two ends not open
  3. This machine can process cold cutting and beveling simultaneously
  4. With an option for electric, Pneumatic, Hydraulic, CNC based on site condition
  5. Tool feed automatically with Low noise, long life and stable performance
  6. Cold working without Spark, will not affect the pipe material
  7. Can process different pipe material: Carbon steel, stainless steel, alloys etc.
