SMG Orbi-Edge Electric Pipe Beveling Machine

The SMG Orbi-Edge Electric Pipe Beveling Machine is lightweight in structure and can work on minimal radial space. This machine can separate to two half for easier operations. This machine is also designed to perform cutting and beveling simultaneously. Steel Machinery Group offers a wide variety of cutting and beveling machine engineered to operate at optimal levels.

$ 5,146.00 AUD

Select Model Number *

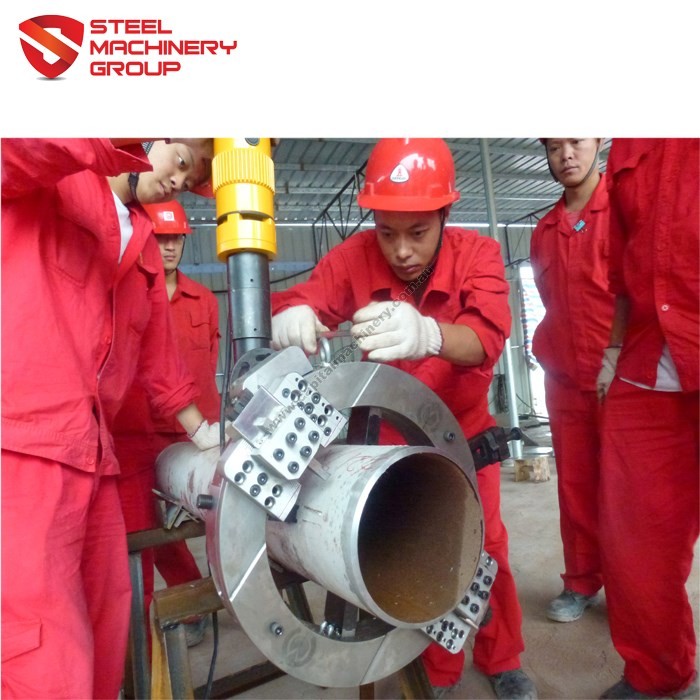

Like with all SMG products, this machine is designed to be lightweight and requires minimal radial space, and extremely easy to operate. With its split frame design, it separates the mount of the in-line pipe for a more stable and stronger clamping, therefor allowing simultaneous process cutting and bevelling.

Specifications

Power Supply: 220-240v 1 ph 50-60 HZ

Motor Power: 1.5-2KW

Model NO. Working Range Wall Thickness Rotation Speed
SMG-89E φ 25-89 3/4‘’-3‘’ ≤35mm 42 r/min
SMG-168E φ50-168 2‘’-6‘’ ≤35mm 18 r/min
SMG-230E φ80-230 3‘’-8‘’ ≤35mm 15 r/min
SMG-275E φ125-275 5‘’-10‘’ ≤35mm 14 r/min
SMG-305E φ150-305 6‘’-10‘’ ≤35mm 13 r/min
SMG-325E φ168-325 6‘’-12‘’ ≤35mm 13 r/min
SMG-377E φ219-377 8‘’-14‘’ ≤35mm 12 r/min
SMG-426E φ273-426 10‘’-16‘’ ≤35mm 12 r/min
SMG-457E φ300-457 12‘’-18‘’ ≤35mm 12 r/min
SMG-508E φ355-508 14‘’-20‘’ ≤35mm 12 r/min
SMG-560E φ400-560 16‘’-22‘’ ≤35mm 12 r/min
SMG-610E φ457-610 18‘’-24‘’ ≤35mm 11 r/min
SMG-630E φ480-630 20‘’-24‘’ ≤35mm 11 r/min
SMG-660E φ508-660 20‘’-26‘’ ≤35mm 11 r/min
SMG-715E φ560-715 22‘’-28‘’ ≤35mm 11 r/min
SMG-762E φ600-762 24‘’-30‘’ ≤35mm 11 r/min
SMG-830E φ660-813 26‘’-32‘’ ≤35mm 10 r/min
SMG-914E φ762-914 30‘’-36‘’ ≤35mm 10 r/min
SMG-1066E φ914-1066 36‘’-42‘’ ≤35mm 10 r/min
SMG-1230E φ1066-1230 42‘’-48‘’ ≤35mm 10 r/min

Note: Standard machine packaging includes:

  • 2 pcs cutter
  • 2pcs of bevel tool
  • tools
  • operation manual

Features

  1. Low axial and radial clearance lightweight suitable for working at a narrow and complicated site
  2. Split frame design can separate to 2 half, easy to process when two end not open
  3. This machine can process cold cutting and beveling simultaneously
  4. With option for electric, Pneuamtic, Hydraulic ,CNC based on site condition
  5. Tool feed automatically with Low noise, long life and stable performance
  6. Cold working without Spark , Will not affect the pipe material
  7. Can process different pipe material : Carbon steel, stainless steel , alloys etc
