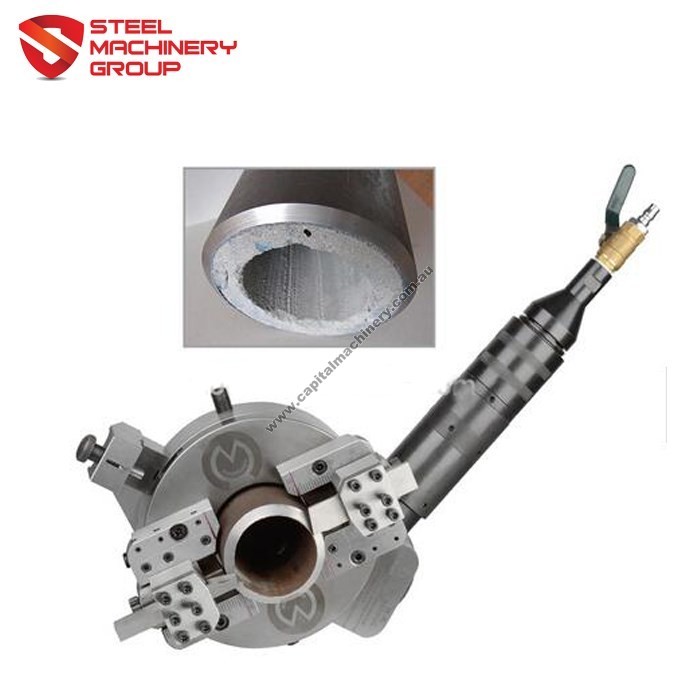

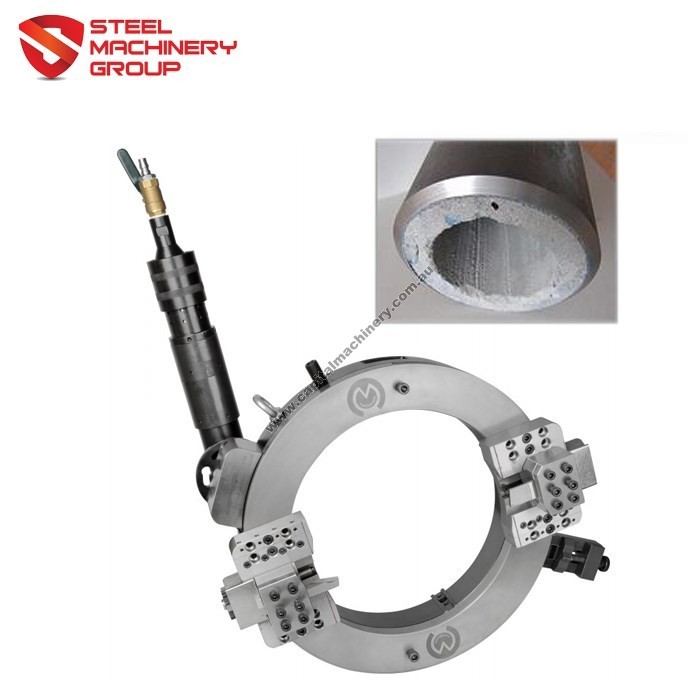

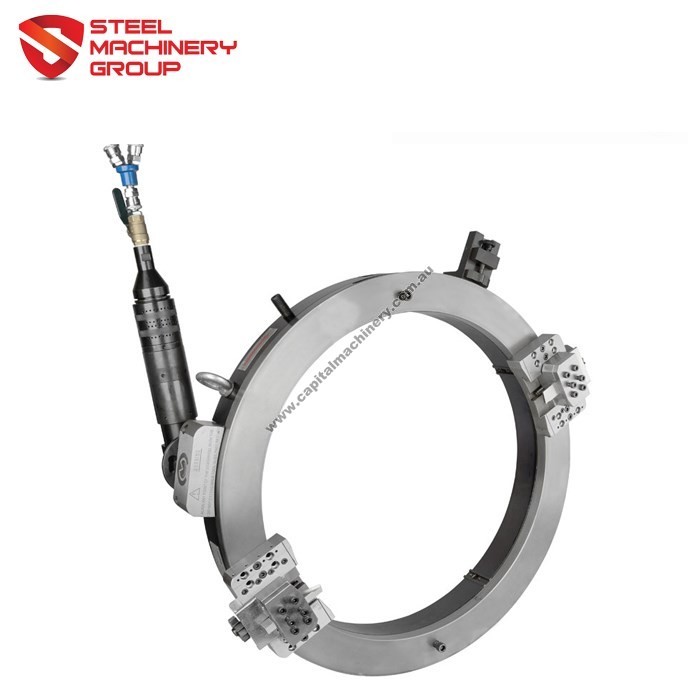

SMG Automatic Cold Pipe Cutting Beveling Machine


The SMG-159 Automatic Cold Pipe Cutting Beveling Machine can process cold cutting and bevel simultaneously. It is designed with the latest technology to provide quality results in beveling and cutting. It features a low axial and radial clearance and its lightweight structure makes it suitable for complicated sites. Steel Machinery Group offers top beveling and cutting machines at competitive prices. We are committed to providing you with top-notch products able to perform at optimal levels.

This series features a portable od-mounted frame type pipe cold cutting and beveling machine. Like all SMG products in this line, it offers superior lightweight design, minimal radial space and extremely easy to operate. It also features a split frame design that separates mount the od of the in-line pipe for strong and stable clamping, making it easier and more efficient to process simultaneous cutting and beveling.

Specifications

Power Supply: 0.6-1.0 @1500-2000L/min

Model No.Working Range        Wall ThicknessRotation SpeedAir PressureAir Consumption
SMG-89φ 25-893/4‘’-3‘’≤35mm50 r/min0.6~1.0MPa1500 L/min
SMG-159φ50-1592‘’-5‘’≤35mm21 r/min0.6~1.0MPa1500 L/min
SMG-168φ50-1682‘’-6‘’≤35mm21 r/min0.6~1.0MPa1500 L/min
SMG-230φ80-2303‘’-8‘’≤35mm20 r/min0.6~1.0MPa1500 L/min
SMG-275φ125-2755‘’-10‘’≤35mm20 r/min0.6~1.0MPa1500 L/min
SMG-305φ150-3056‘’-10‘’≤35mm18 r/min0.6~1.0MPa1500 L/min
SMG-325φ168-3256‘’-12‘’≤35mm16 r/min0.6~1.0MPa1500 L/min
SMG-377φ219-3778‘’-14‘’≤35mm13 r/min0.6~1.0MPa1500 L/min
SMG-426φ273-42610‘’-16‘’≤35mm12 r/min0.6~1.0MPa1800 L/min
SMG-457φ300-45712‘’-18‘’≤35mm12 r/min0.6~1.0MPa1800 L/min
SMG-508φ355-50814‘’-20‘’≤35mm12 r/min0.6~1.0MPa1800 L/min
SMG-560φ400-56016‘’-22‘’≤35mm12 r/min0.6~1.0MPa1800 L/min
SMG-610φ457-61018‘’-24‘’≤35mm11 r/min0.6~1.0MPa1800 L/min
SMG-630φ480-63020‘’-24‘’≤35mm11 r/min0.6~1.0MPa1800 L/min
SMG-660φ508-66020‘’-26‘’≤35mm11 r/min0.6~1.0MPa1800 L/min
SMG-715φ560-71522‘’-28‘’≤35mm11 r/min0.6~1.0MPa1800 L/min
SMG-762φ600-76224‘’-30‘’≤35mm11 r/min0.6~1.0MPa2000 L/min
SMG-830φ660-81326‘’-32‘’≤35mm10 r/min0.6~1.0MPa2000 L/min
SMG-914φ762-91430‘’-36‘’≤35mm10 r/min0.6~1.0MPa2000 L/min
SMG-1066φ914-106636‘’-42‘’≤35mm9 r/min0.6~1.0MPa2000 L/min
SMG-1230φ1066-1230   42‘’-48‘’≤35mm8 r/min0.6~1.0MPa2000 L/min

Note: Standard Machine Packaging includes:

– 2 pcs cutter
– 2pcs of bevel tool
– tools
– operation manual

 Features

1. Low axial and radial clearance lightweight suitable for working at a narrow and complicated site
2. Split frame design can separate to 2 half, easy to process when two ends not open
3. This machine can process cold cutting and beveling simultaneously
4. With an option for electric, Pneumatic, Hydraulic, CNC based on site condition
5. Tool feed automatically with Low noise, long life and stable performance
6. Cold working without Spark, Will not affect the pipe material
7. Can process different pipe material: Carbon steel, stainless steel, alloys etc.
8. Explosion Proof, Simple structure makes easy to maintenance
