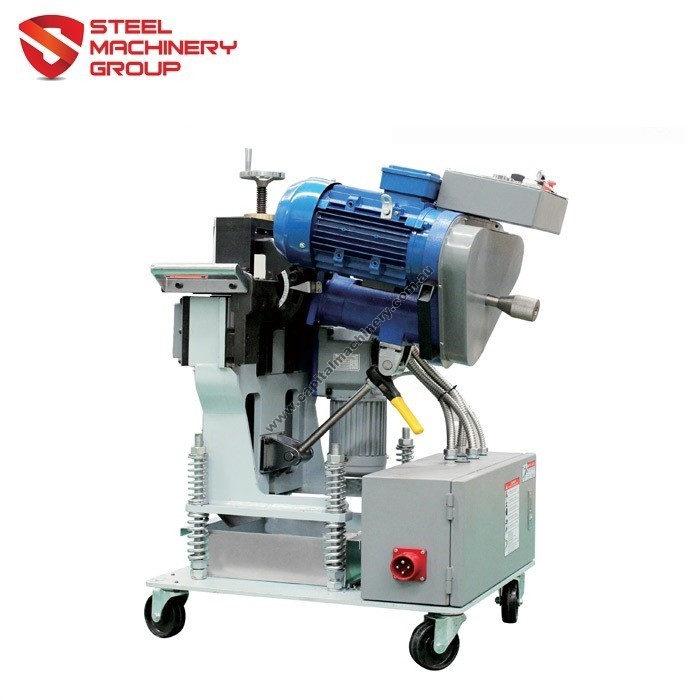

SMG-25A-U-GMMA Downhill Beveling Machine


SMG-25A-U-GMMA Downhill Beveling Machine is engineered with the latest technology in steel fabrication. Designed to provide high-efficient and precise performance on welding bevel and joint processing. It is able to work with a wide range of plate thickness up to 4-100mm, the bevel angle of 0-90 degrees and customized machines for options. Take advantage of our low-cost, low-noise and top-quality beveling machine here at Steel Machinery Group.

SMG-25A-U-GMMA Beveling Machine is especially for down bevel while processing heavy-duty steel plates. Clamp thickness of 8-60mm and bevel angel 0 to -45 degree adjustable.Easy operation, high efficiency and previous Ra 3.2-6.3 with 2 motors.

Two processing ways:

Model 1: Cutter catches the steel and leads into the machine to complete the job while processing small steel plates.
Model 2: Machine will travel along the edge of steel and complete job while processing large steel plates.

Specifications

Model No.SMG-25A-U-GMMA downhill beveling machine
Power SupplyAC 415V 50HZ
Total Power4800W
Spindle Speed1050r/min
Feed Speed0-1500mm/min
Clamp Thickness8-60mm
Clamp Width>100mm
Process Length>300mm
Bevel angel0 to -45 degree adjustable
Single Bevel Width10-20mm
Bevel Width0-45mm
Cutter Plate63mm
Cutter QTY6PCS
Worktable Height730-760mm
Travel Space800*800mm
WeightN.W 260KGS  G.W 300KGS
Packaging Size890*740*1130mm

Note: Standard Machine includes:
 – 1pc cutter head
 – 2 set of Inserts
 – Tools in case
 – Manual Operation

Features

1.  Available for metal plate Carbon steel, stainless steel, aluminium etc
2. Can process “V”,”Y”, 0 degree milling, vary type of bevel joint
3. Milling Type with High Previous can reach Ra 3.2-6.3 for surface
4.Cold Cutting, energy saving and Low Noise, More safe and environmental with OL protection
5. Wide working range with Clamp thickness 3-30mm and bevel angel 25-80 degree adjustable
6. Easy Operation and high efficiency
7. Feeding speed adjustable
