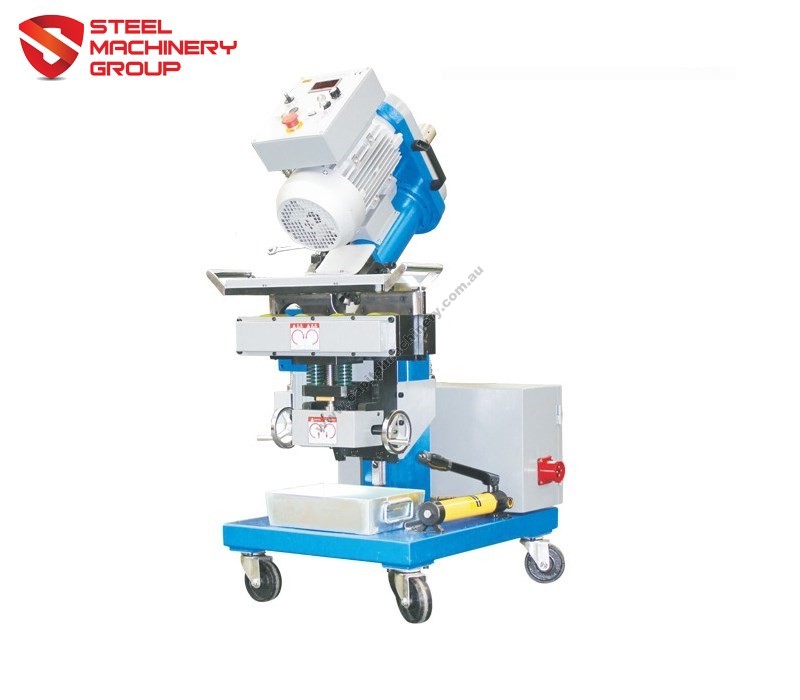

SMG Rapid-Edge 45M Milling Type Plate Beveling Machine
SMG Rapid-Edge 45M Milling Type Plate Beveling Machine is able to provide high-efficient and precise performance on welding bevel and joint processing. It works well on a wide range of plate with a thickness of 4-100mm and bevel angle of 0-90 degrees, and customized machines for the option. Take advantage of this cost-effective, low-noise beveling machine here at Steel Machinery Group.
Specifications
| Model No. | SMG Rapid-Edge 45M Milling Type Plate Beveling Machine |
| Power Supply | AC 415V 50HZ |
| Total Power | 3400W |
| Spindle Speed | 1050r/min |
| Feed Speed | 0-1500mm/min |
| Clamp Thickness | 6-60mm |
| Clamp Width | ＞80mm |
| Process Length | ＞300mm |
| Bevel angel | 10-60 degree adjustable |
| Single Bevel Width | 10-20mm |
| Bevel Width | 0-45mm |
| Cutter Plate | 63mm |
| Cutter QTY | 6PCS |
| Worktable Height | 700-760mm |
| Travel Space | 800*800mm |
| Weight | N.W 200KGS G.W 255KGS |
| Packaging Size | 800*690*1140mm |
Note: Standard Machine including
- 1pc cutter head
- 2 set of Inserts
- Tools in case
- Manual Operation
| Weight | 10.00 kg |
|---|
