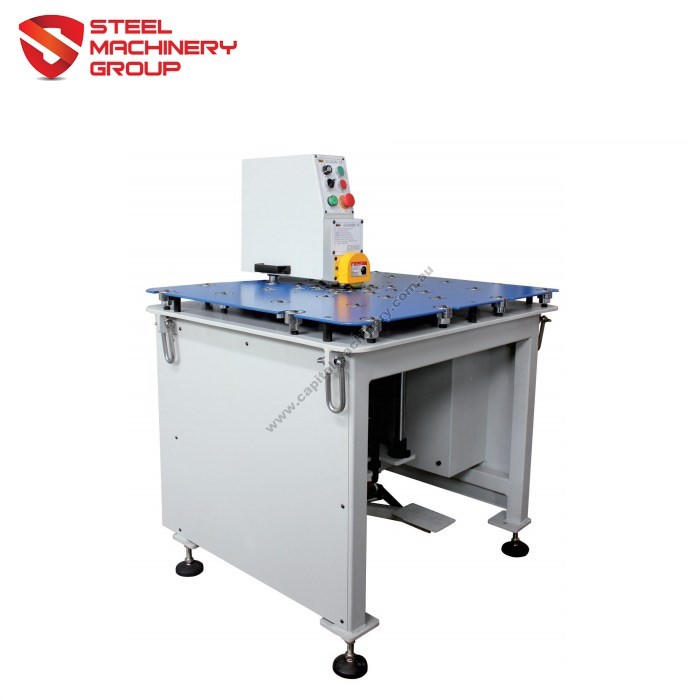

SMG 3R Metal Edge Rim Chamfering Machine
Steel Machinery Group is your supplier of top-quality, cost effective, low-noise and easy maintenance beveling machine in Australia. We have top-quality brands ready to provide efficient results at competitive prices. The SMG-R3T Metal Edge Rim Chamfering Machine is designed to work with a wide range of plate thickness of up to 4-100mm, bevel angle of 0-90 degrees and customized machine for better options. It offers easy-operations and precise performance in terms of welding bevel and joint processing.
The SMG 3R Metal Edge Rim Chamfering Machine is mainly designed for edge radius processing. Available for option R2, R3, C3, C2, depending on your specifications. It is capable of processing plates in different shapes at clamp thickness of 6-40mm for rim chamfering pre-painting.
Specifications
| Model No. | SMG-R3T Chamfering Machine |
| Power Supply | AC 380V 50HZ |
| Total Power | 790W |
| Spindle Speed | 2800r/min |
| Feed Speed | 0-6000mm/min |
| Clamp Thickness | 6-40mm |
| Process Hole Din | ＞ φ 50mm |
| Process Capacity | R3, R2, C3, C2 |
| Cutter Plate | φ 40mm |
| Cutter QTY | 3 PCS |
| Worktable Height | 775mm |
| Travel Space | 800*900mm |
| Weight | N.W 260KGS G.W 310KGS |
| Packaging Size | 1000*1000*1150mm |
Note: Standard Machine includes:
- 1pc cutter head
- 2 set of Inserts
- Tools in case
- Manual Operation
Features
- Available for metal plate Carbon steel, stainless steel, aluminium etc
- Can process R3, R2, C3, C2 as per customer’s need for metal edge chamfering
- Cold chamfering, energy saving and Low Noise, More safe and environmental with OL protection
- Wide working range with Clamp thickness 6-40mm and easy adjustable
- Easy Operation and high efficiency
| Weight | 10.00 kg |
|---|
