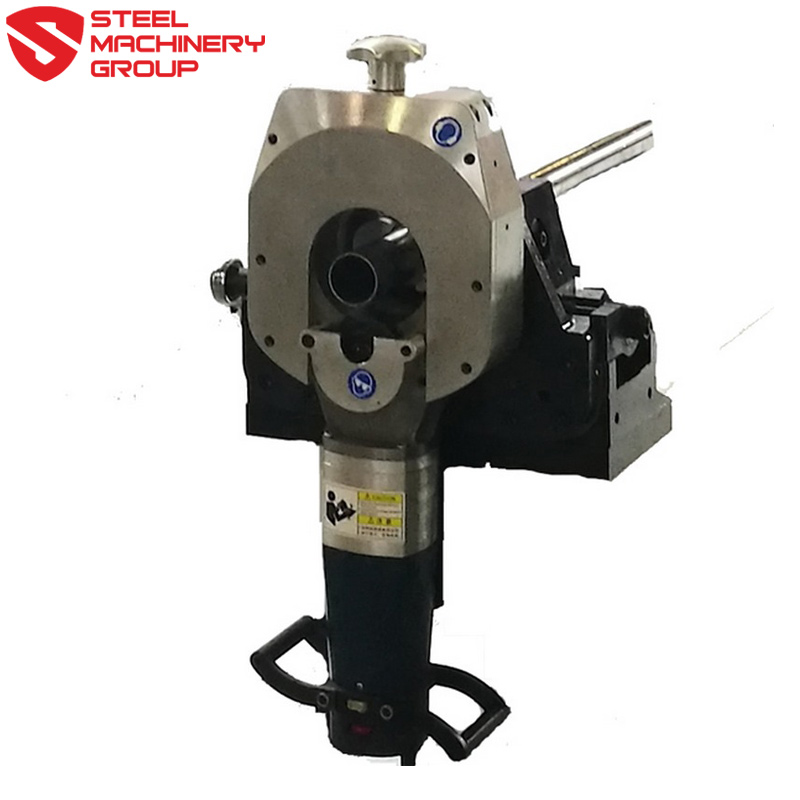

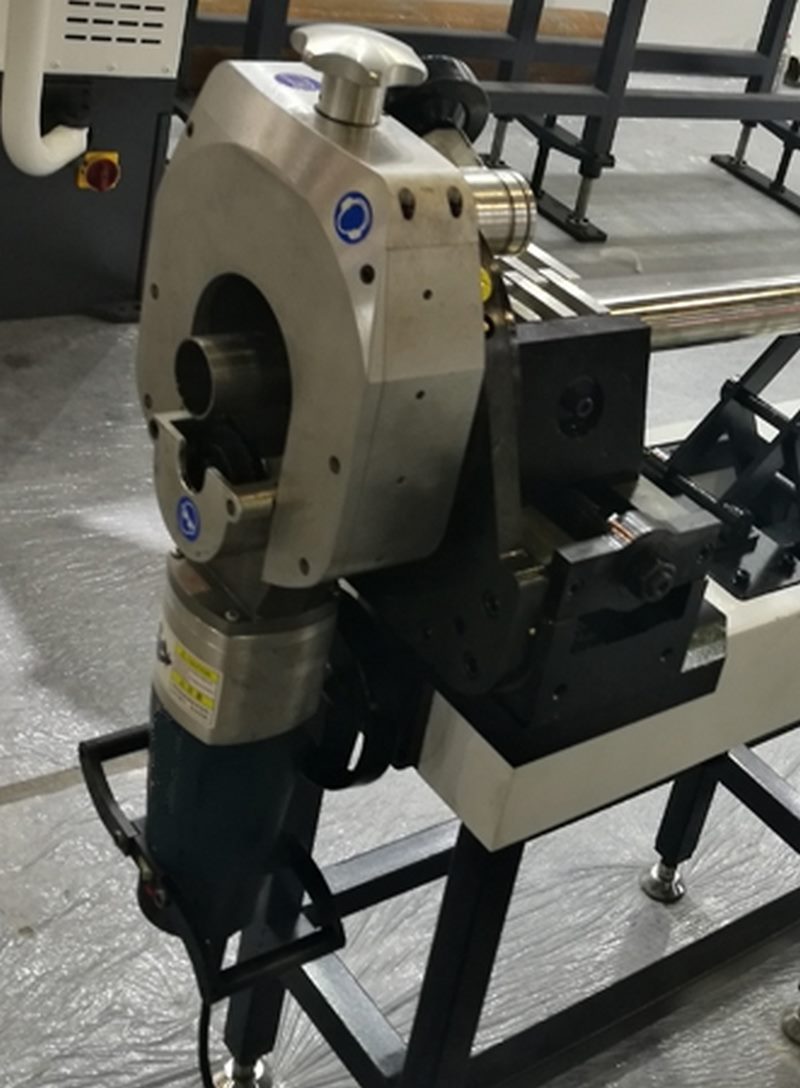

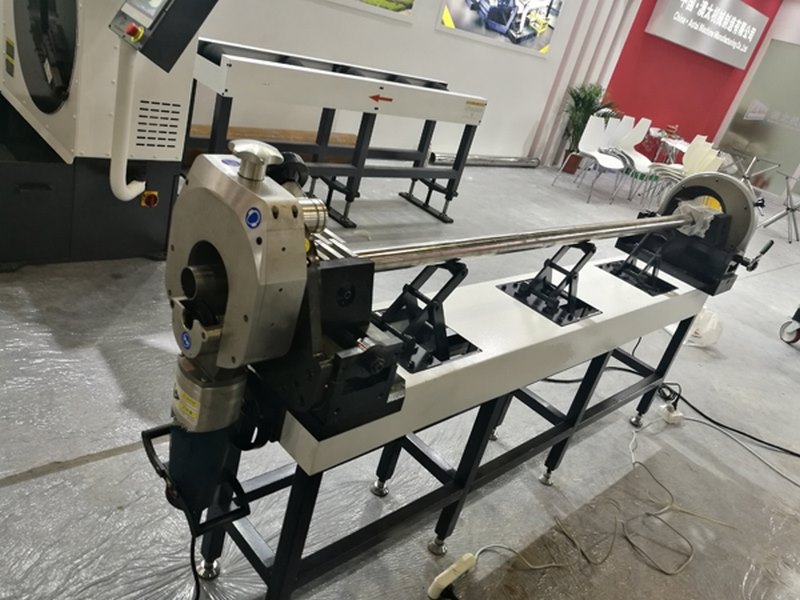

SMG OPC-120 Orbital Pipe Cutting Beveling Machine
The SMG OPC-120 Orbital Pipe Cutting Beveling Machine is an innovative addition to our product line, refined by merging the best features of domestic and international models. Powered by a durable Bosch motor, this machine boasts exceptional strength and reliability. Its compact and lightweight design ensures easy portability and space efficiency.
$ 0.00 AUD
The SMG OPC-120 Orbital Pipe Cutting Beveling Machine is an innovative addition to our product line, refined by merging the best features of domestic and international models. Powered by a durable Bosch motor, this machine boasts exceptional strength and reliability. Its compact and lightweight design ensures easy portability and space efficiency.
The ergonomic handle allows for a safer and more convenient rotation of the cutting head. Post-cutting, the pipe end is perfectly vertical and free of burrs, ready for direct welding. Additionally, it can perform beveling with a specialized bevel blade, ensuring top-notch welding quality.
FEATURES
- Cold cutting does not affect the pipe material.
- Vertical incisions without deformation, leaving a burr-free end surface.
- Simultaneous installation of cutting and beveling saw blades:
- Quick processing—cutting or beveling takes only a few seconds.
- High safety—the pipe remains stationary while the saw blade rotates to complete the cut.
- Motor-driven for enhanced performance.
- Compact and lightweight, suitable for workshop use and field construction.
- Compatible with saw blades from AXXAIR, +GF+, DCS, and other leading pipe cutting machines.
Capability
- Pipe cut off
- Pipe beveling
- Cutting and beveling
SPECIFICATION
| Model | Working Range | Wall Thickness | rotating | |
| OD mm | CS mm | SS mm | rpm | |
| OPC-120 | Ф10～120 | ≤12 | ≤7 | 80～120 |
Above parameters just for reference only, not acceptance criteria
| Weight | 100 kg |
|---|---|
| Dimensions | 80 × 60 × 53 cm |
