SMG 650NM Electric Tube and Pipe Notching Machine

   SMG 650NM Electric Tube and Pipe Notching Machine – Operator’s Manual

The SMG 650NM Electric Tube & Pipe Notching Machine is built for professional fabricators who demand speed, consistency, and reliability. Whether you’re building tubular frames, guardrails, or custom structures, this machine consistently delivers clean notches with minimal setup.

Key Features & Benefits

• Comprehensive Notching Range

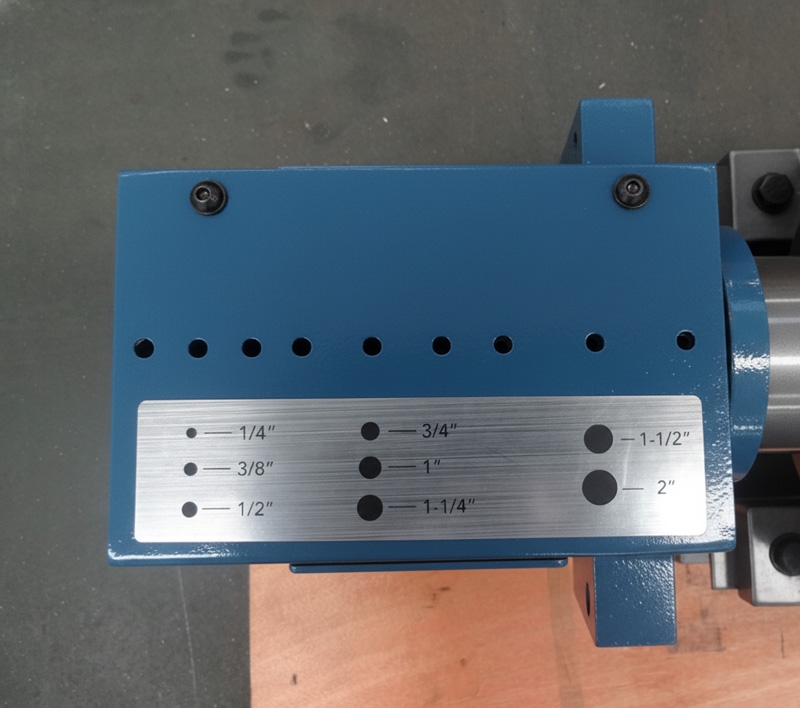

  Capable of notching pipes and tubes from ¼” (6.35 mm) up to 2″ (50.8 mm) (Schedule-40 standard)

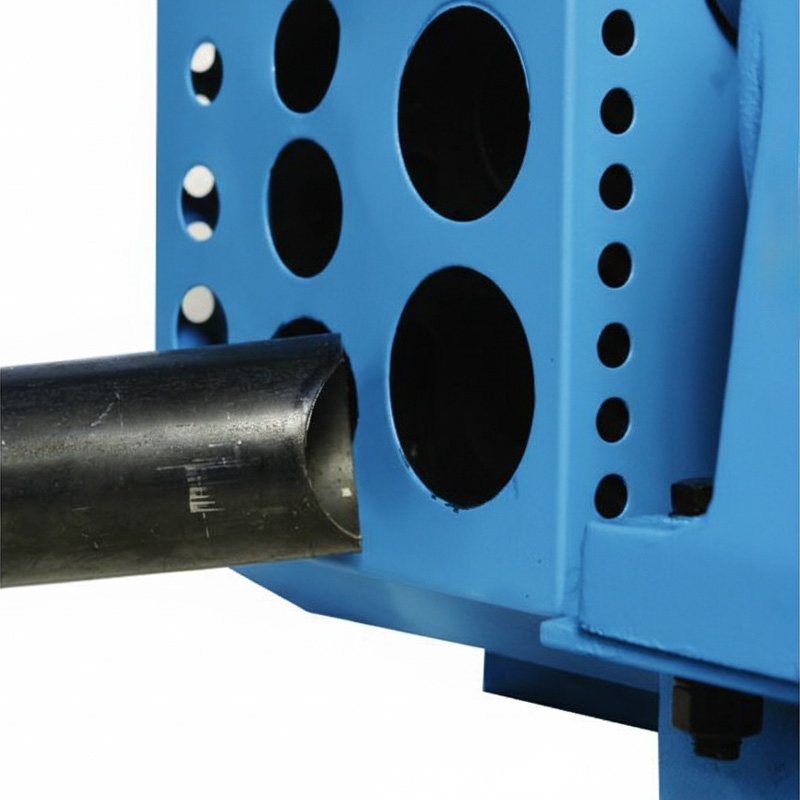

• Efficient 90° Notch Process
  Perform one side, reverse 180°, and notch the opposite side to create perfect 90° notches quickly

• Electric Drive (240V, Single Phase)
  Designed for standard workshop power, eliminating the need for special circuits

• Rigid Construction & Precision Design
  High-strength frame and components ensure durability and consistent alignment

• User-Friendly Operation
  Intuitive controls, minimal setup, and quick tool change reduce downtime

• Safety & Chip Control
  Guards and shields help protect operators from debris and chips

Specification

Inclusion

Standard

• Steel notching frame
• Adjustable pipe holder
• Swivel and rotating base

Optional

• Drill press adapter kit
• Additional pipe clamp sizes
• Custom worktable mounting kit

Shipping & Installation

• Packing: 1 unit per crate
• Shipping Dimensions: 820 × 450 × 480 mm
• Weight: 112 kg gross
• Installation: Can be mounted on standard drill presses and minor assembly required

Warranty & Support

• Warranty: 1-year standard manufacturer’s warranty
