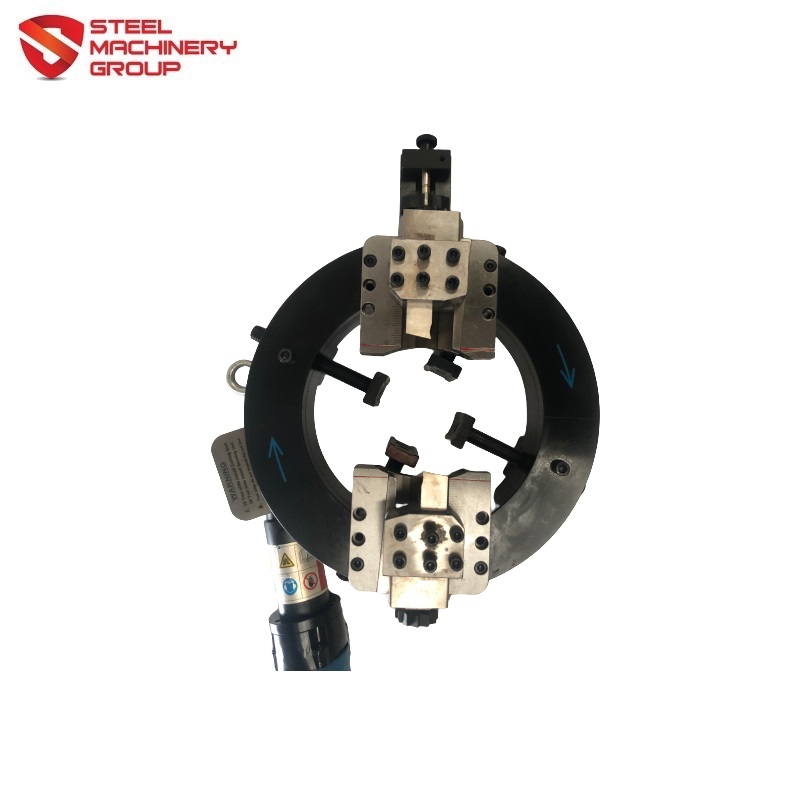

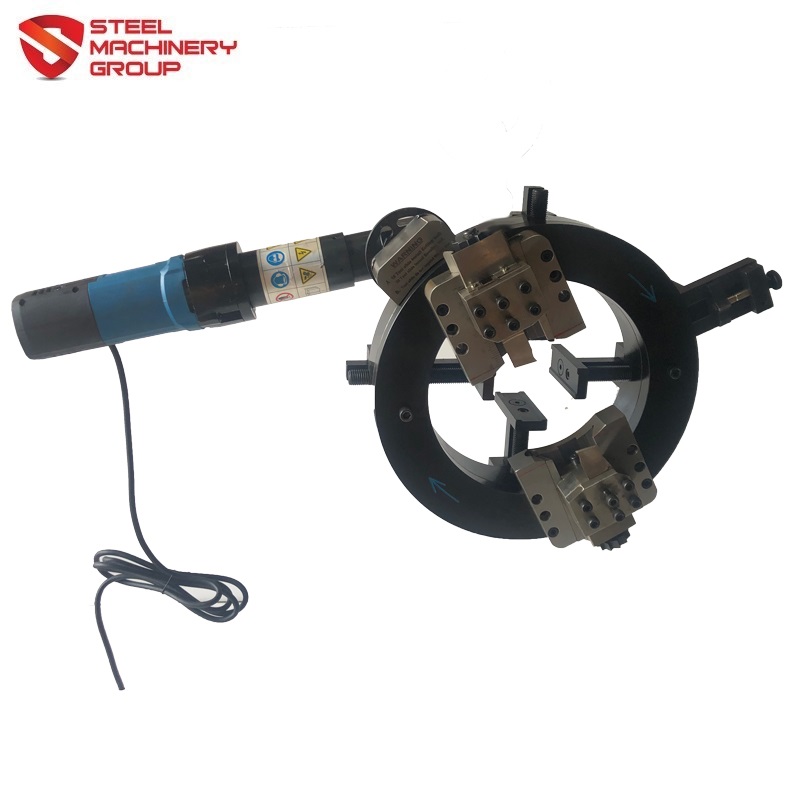

SMG Orbi-Edge Electric Pipe Cutting and Beveling Machine

Check Stock / Request Quote / Ask Questions

$ 5,364.00 AUD

Select Model Number *

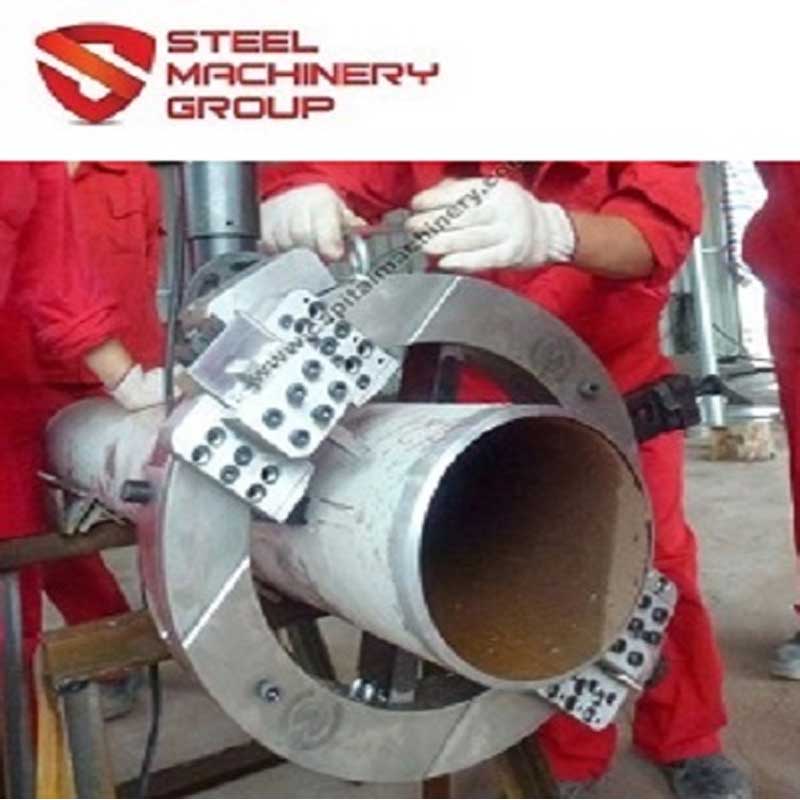

The SMG Orbi-Edge Electric Pipe Cutting and Beveling Machine offers efficient simultaneous cutting and beveling operations. This machine is engineered to be lightweight, requiring minimal radial space, and is extremely user-friendly. Its split frame design provides stable and robust clamping by separating the mount of the in-line pipe, allowing for simultaneous cutting and beveling processes.

Technical Specifications:

  • Power Supply: 220-240v 1 ph 50-60 HZ
  • Motor Power: 1.5-2KW
Model NO. Working Range Wall Thickness Rotation Speed
SMG-89OE φ 25-89 3/4‘’-3‘’ ≤35mm 42 r/min
SMG-168OE φ50-168 2‘’-6‘’ ≤35mm 18 r/min
SMG-230OE φ80-230 3‘’-8‘’ ≤35mm 15 r/min
SMG-275OE φ125-275 5‘’-10‘’ ≤35mm 14 r/min
SMG-305OE φ150-305 6‘’-10‘’ ≤35mm 13 r/min
SMG-325OE φ168-325 6‘’-12‘’ ≤35mm 13 r/min
SMG-377OE φ219-377 8‘’-14‘’ ≤35mm 12 r/min
SMG-426OE φ273-426 10‘’-16‘’ ≤35mm 12 r/min
SMG-457OE φ300-457 12‘’-18‘’ ≤35mm 12 r/min
SMG-508OE φ355-508 14‘’-20‘’ ≤35mm 12 r/min
SMG-560OE φ400-560 16‘’-22‘’ ≤35mm 12 r/min
SMG-610OE φ457-610 18‘’-24‘’ ≤35mm 11 r/min
SMG-630OE φ480-630 20‘’-24‘’ ≤35mm 11 r/min
SMG-660OE φ508-660 20‘’-26‘’ ≤35mm 11 r/min
SMG-715OE φ560-715 22‘’-28‘’ ≤35mm 11 r/min
SMG-762OE φ600-762 24‘’-30‘’ ≤35mm 11 r/min
SMG-830OE φ660-813 26‘’-32‘’ ≤35mm 10 r/min
SMG-914OE φ762-914 30‘’-36‘’ ≤35mm 10 r/min
SMG-1066OE φ914-1066 36‘’-42‘’ ≤35mm 10 r/min
SMG-1230OE φ1066-1230 42‘’-48‘’ ≤35mm 10 r/min



Includes:

  • 2 x Cutters
  • 2 x Beveling Tools
  • Servicing Tools
  • Operation manual

Features

  1. Low axial & radial clearance, lightweight suitable in working at narrow & complicated work sites.
  2. Split frame design can be separated into two halves, making it easy to process pipe when the two ends are not open and accessible.
  3. The machine can cold cut and bevel simultaneously.
  4. Options of Electric, Pneumatic, Hydraulic and CNC operation.
  5. Auto feeding of cutting and beveling tooling with long life stable performance.
  6. Quiet operation without sparks or work hardening.
  7. Suitable for different pipe alloys and material such as Carbon steel, stainless steel, alloys etc.
SMG Orbi-Edge Pneumatic Pipe Cutting and Beveling Machine Setup
SMG 610-OCP Pneumatic Pipe Cold Cutting and Beveling Machine Video
Categories: , Brand:
Weight 255 kg
Dimensions 114 × 112 × 44 cm
Kilowatt (kW)

2kW
