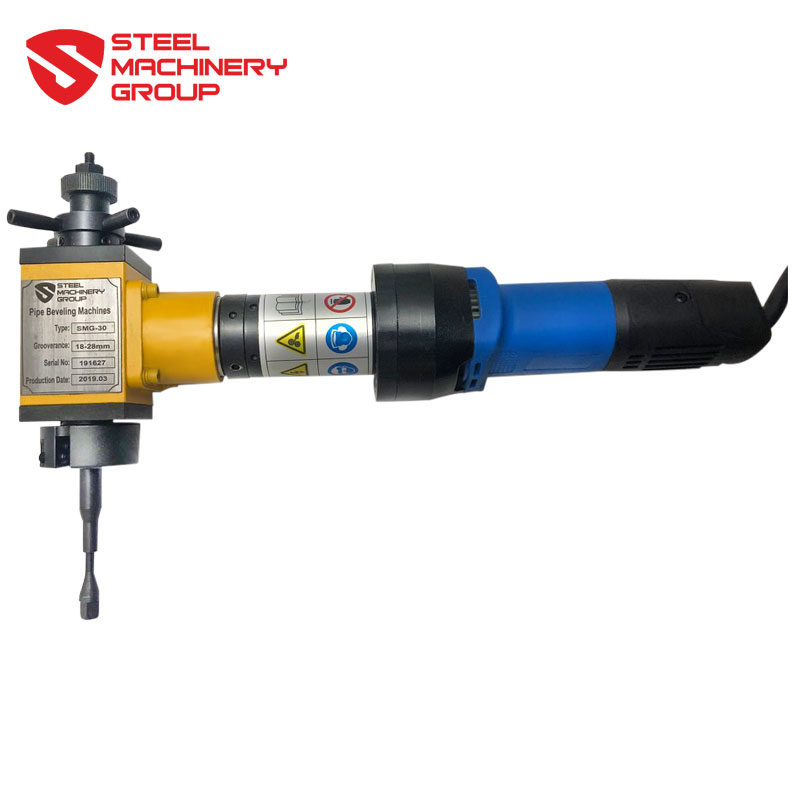

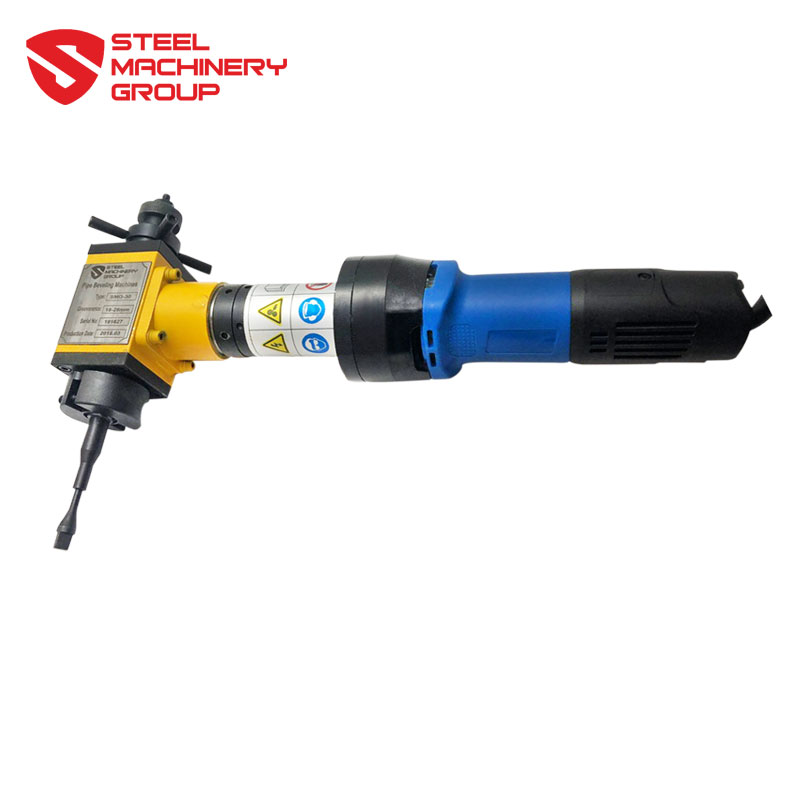

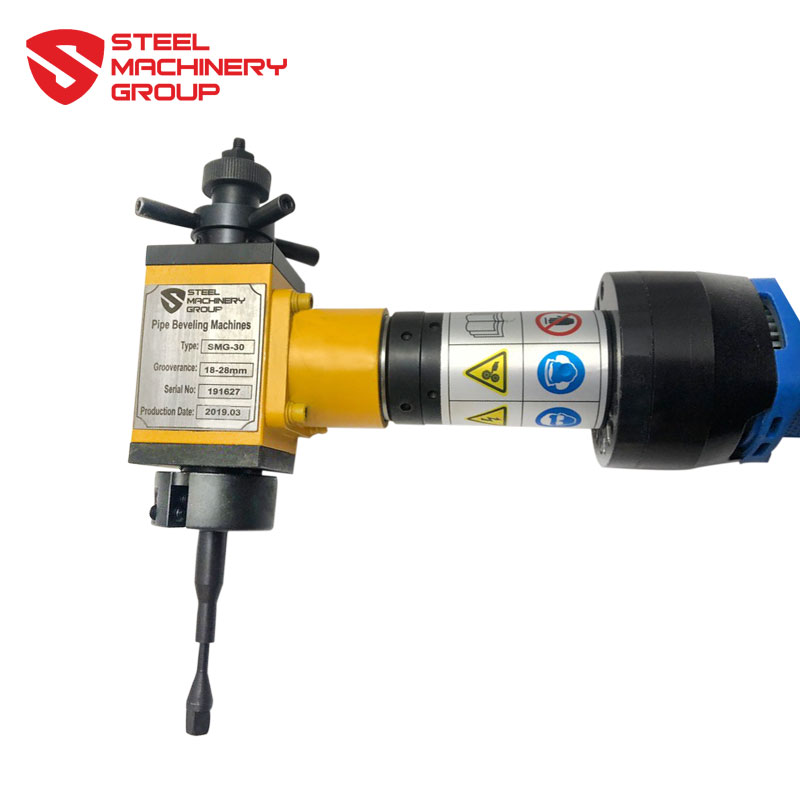

SMG Roto-Edge Electric Pipe Beveling Machine
The SMG Roto-Edge Electric Pipe Beveling Machine is equipped with the latest technological advancements in beveling machines. It has features such as a lightweight structure for convenience, adjustable speed for precision, compact in size for easy operations and maintenance and more. Steel Machinery Group is committed to providing you with all your needs in beveling machine operations. We carry top-brands that are able to produce quality results.
$ 1,804.00 AUD

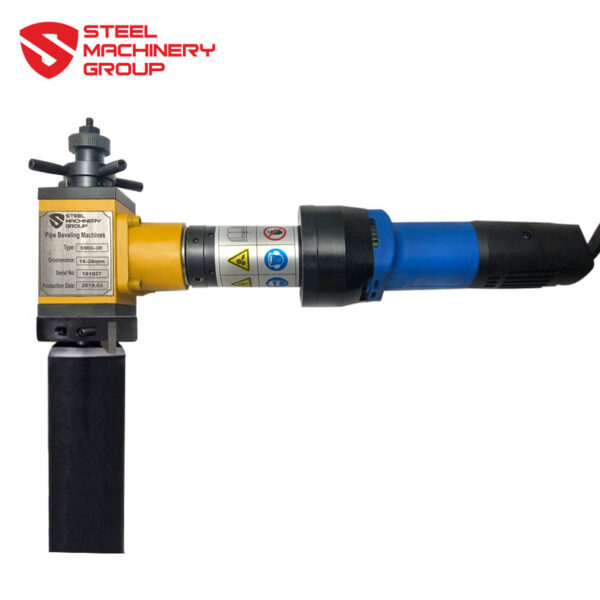

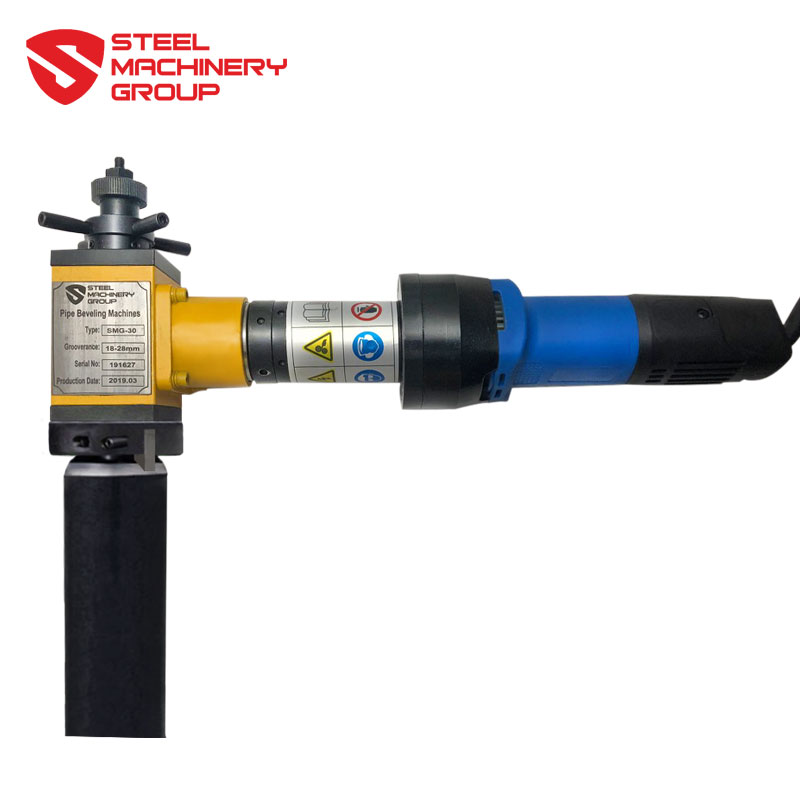

Like with all SMG products, this machine is designed to be lightweight and requires minimal radial space, and extremely easy to operate. By tightening the draw nut, you can expand the mandrel block up a ramp and against the ID surface for positive mounting, self-centered and squared to the bore. It can work with various pipe materials, beveling angles as per your specific requirements.
Specification
Power Supply: 220-240V 1ph 50-60HZ Motor Power:1.4-2kw
| Model No. | Working Range | Wall thickness | Rotation Speed | |
| SMG-30E | φ18-30 | 1/2”-3/4” | ≤15mm | 50 r/min |
| SMG-80E | φ28-89 | 1”-3” | ≤15mm | 55 r/min |
| SMG-120E | φ40-120 | 11/4”-4” | ≤15mm | 30 r/min |
| SMG-159E | φ65-159 | 21/2”-5” | ≤20mm | 35 r/min |
| SMG-252-1 | φ80-273 | 3”-10” | ≤20mm | 16 r/min |
| SMG-252-2E | φ80-273 | ≤75mm | 16 r/min | |
| SMG-352-1E | φ150-356 | 6”-14” | ≤20mm | 14 r/min |
| SMG-352-2E | φ150-356 | ≤75mm | 14 r/min | |
| SMG-426-1E | φ273-426 | 10”-16” | ≤20mm | 12 r/min |
| SMG-426-2E | φ273-426 | ≤75mm | 12 r/min | |
| SMG-630-1E | φ300-630 | 12”-24” | ≤20mm | 10 r/min |
| SMG-630-2E | φ300-630 | ≤75mm | 10 r/min | |
| SMG-850-1E | φ490-850 | 24”-34” | ≤20mm | 9 r/min |
| SMG-850-2E | φ490-850 | ≤75mm | 9 r/min | |

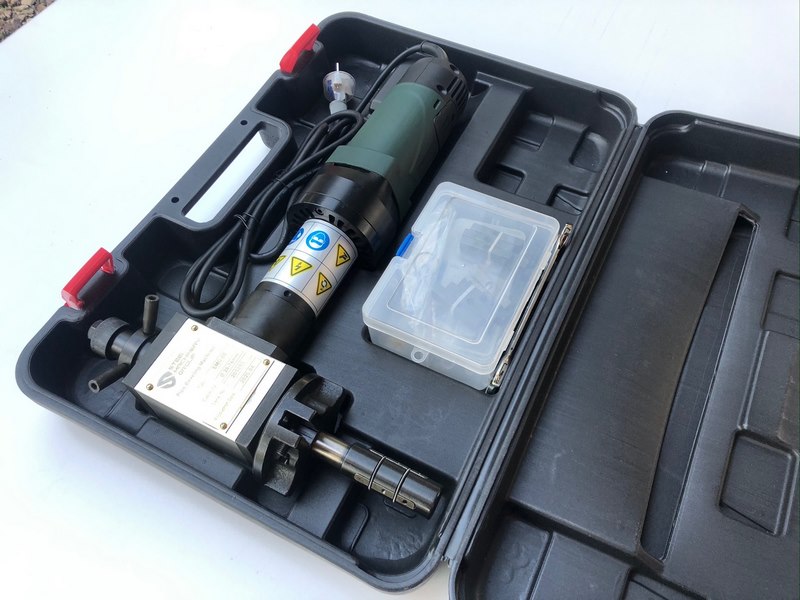

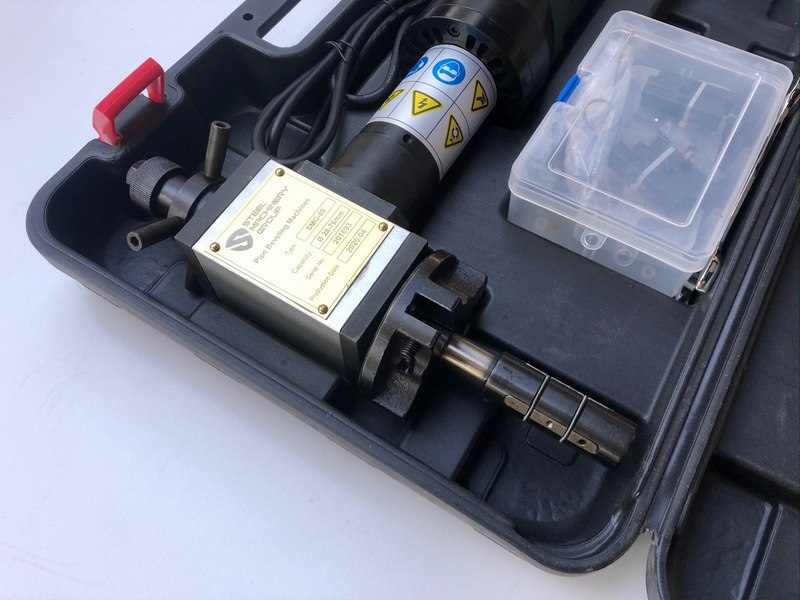

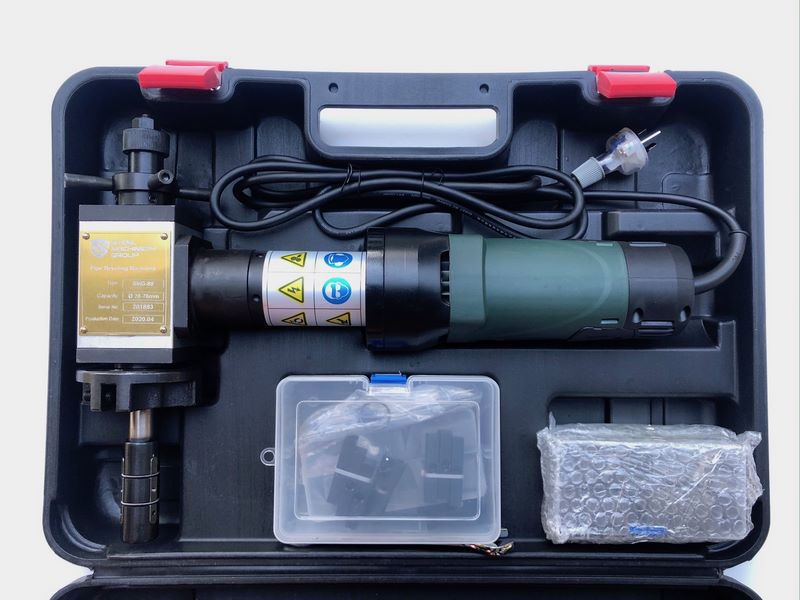

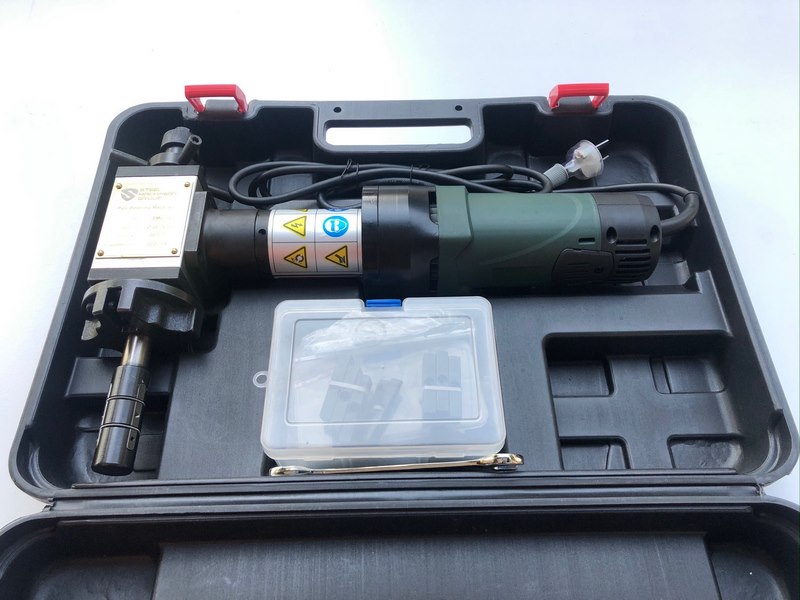

Note: Standard machines include:
- 3 pcs of bevel tool (0 ,30,37.5 degree)
- Tools
- Operation Manual
Feature
- Portable light weight construction
- Compact machine design for easy operation and maintenance
- High performance beveling tools for fast milling
- Suitable for processing different types of pipe materials: Carbon steel, stainless steel, alloys etc.
- Adjustable speed and self centering
- Powerful drive system optional Pneumatic or Electric
| Weight | 10.00 kg |
|---|
