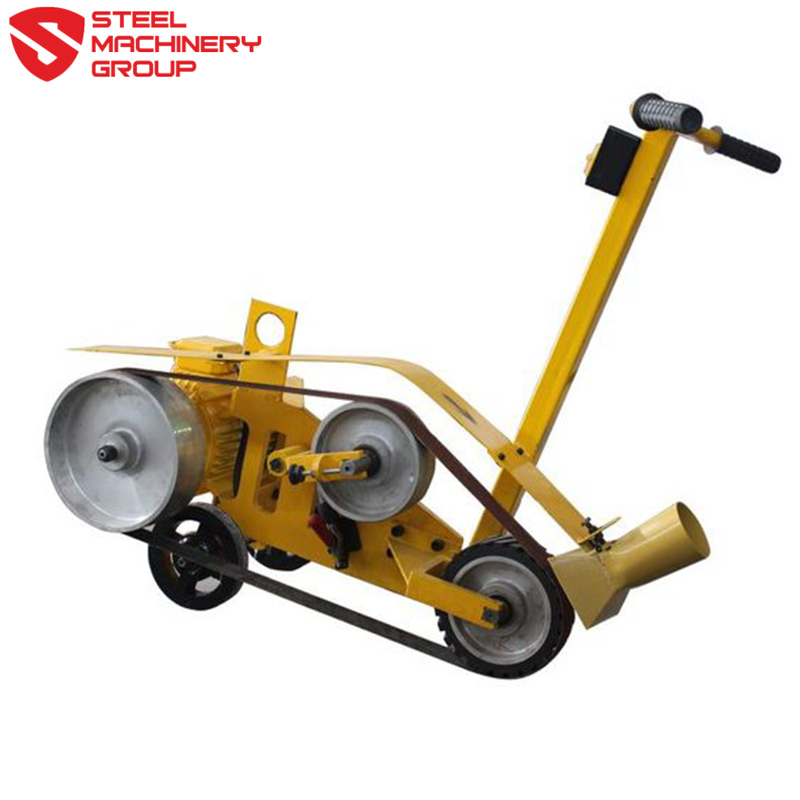

SMG Portable Seam Weld Grinding / Weld Linisher Machine
The SMG Portable Seam Weld Grinding / Weld Linisher Machine (Hand-held) is widely used in stainless steel flat sheet and welding seam polish.
$ 0.00 AUD
The SMG Portable Seam Weld Grinding / Weld Linisher Machine (Hand-held) is widely used in stainless steel flat sheet and welding seam polish.
Specification
| Polishing efficiency | 6 ㎡/h |
| Polishing Precision | Surface roughness (Ra) is less than 0.4μm |
| Abrasive belt specification | 2000mm*50mm |
| Contact wheel specification | diameter at 100mm; width at 50mm |
| Abrasive belt line speed | 30m/s |
| Abrasive belt particle size | 60-600# |
| Motor/power | Y132LS1-2,3KW |
| Machine Weight | 130KGS |

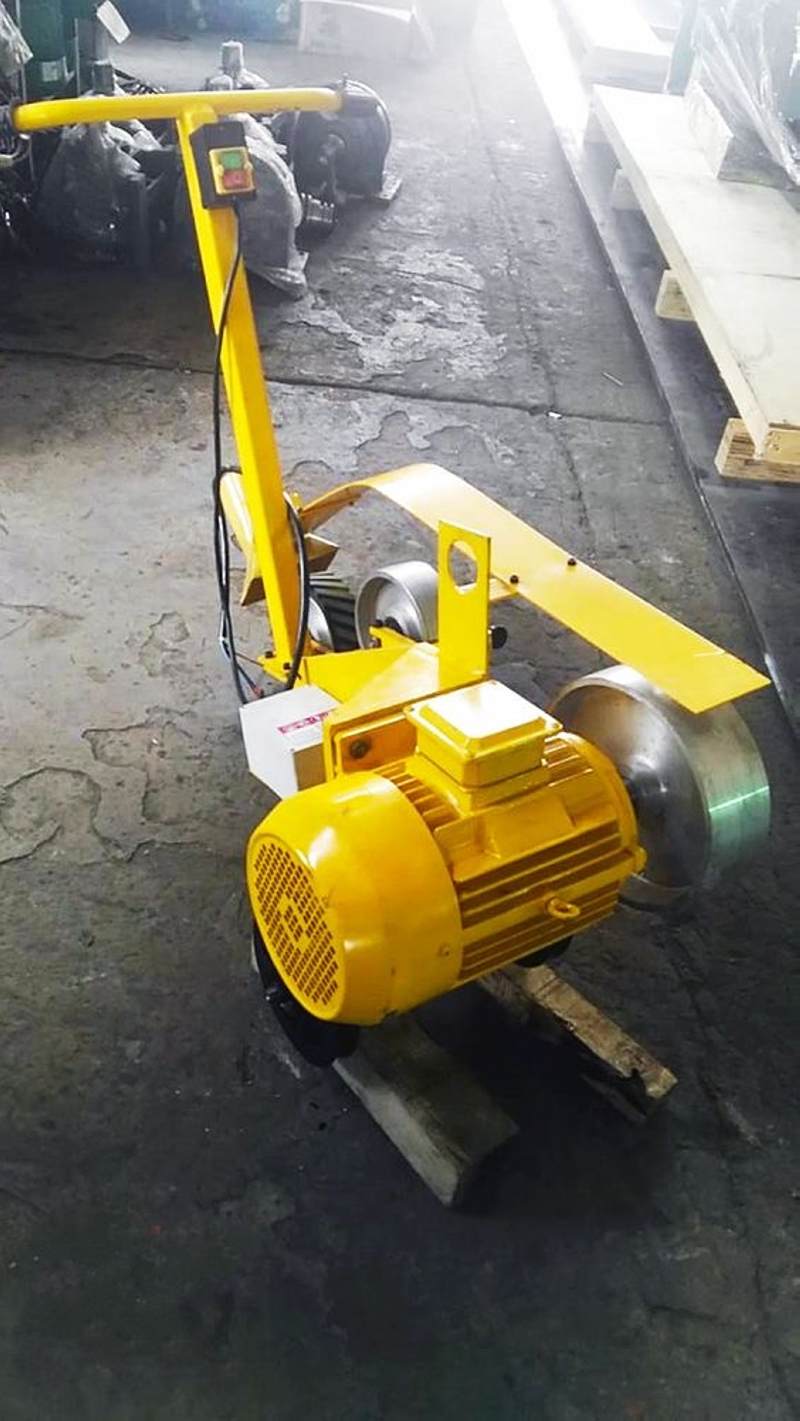

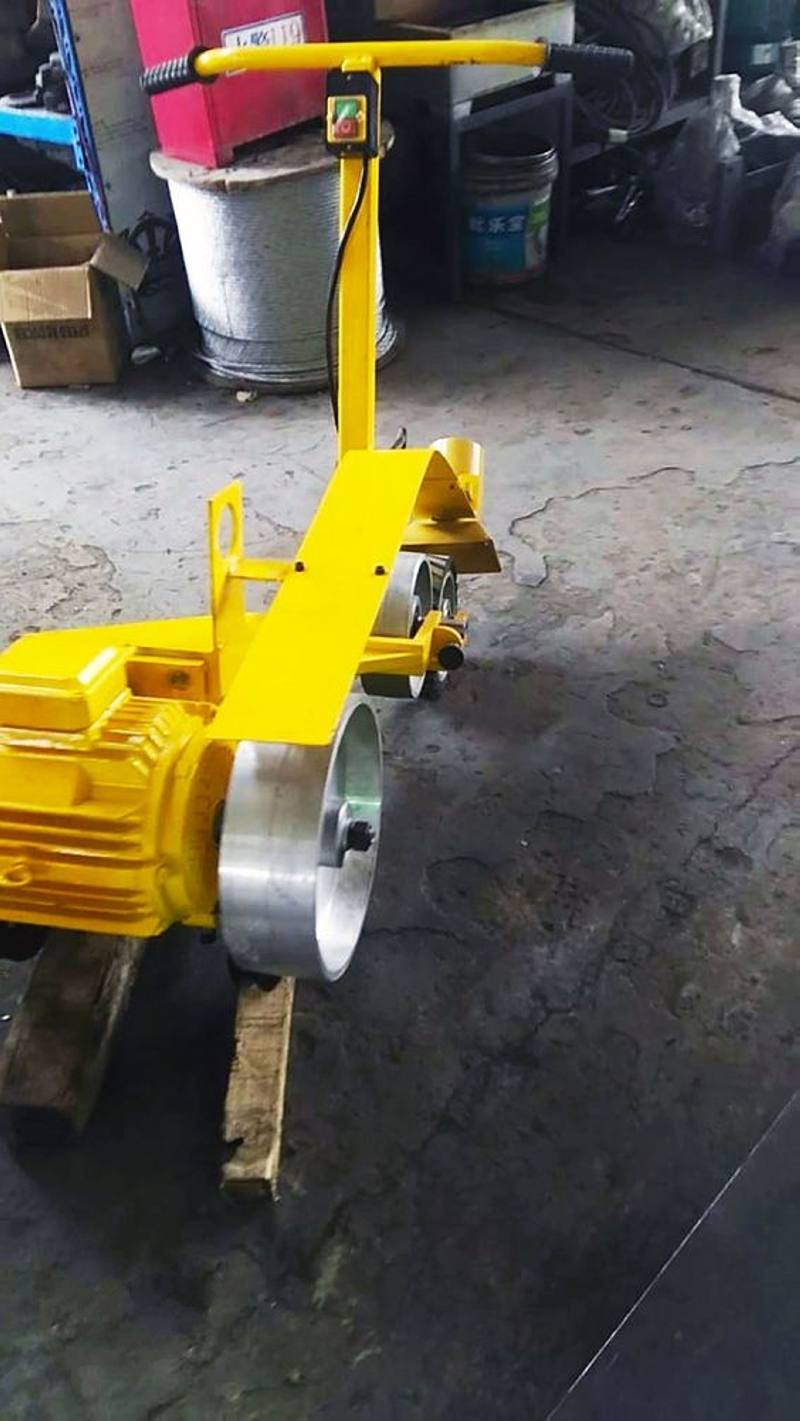

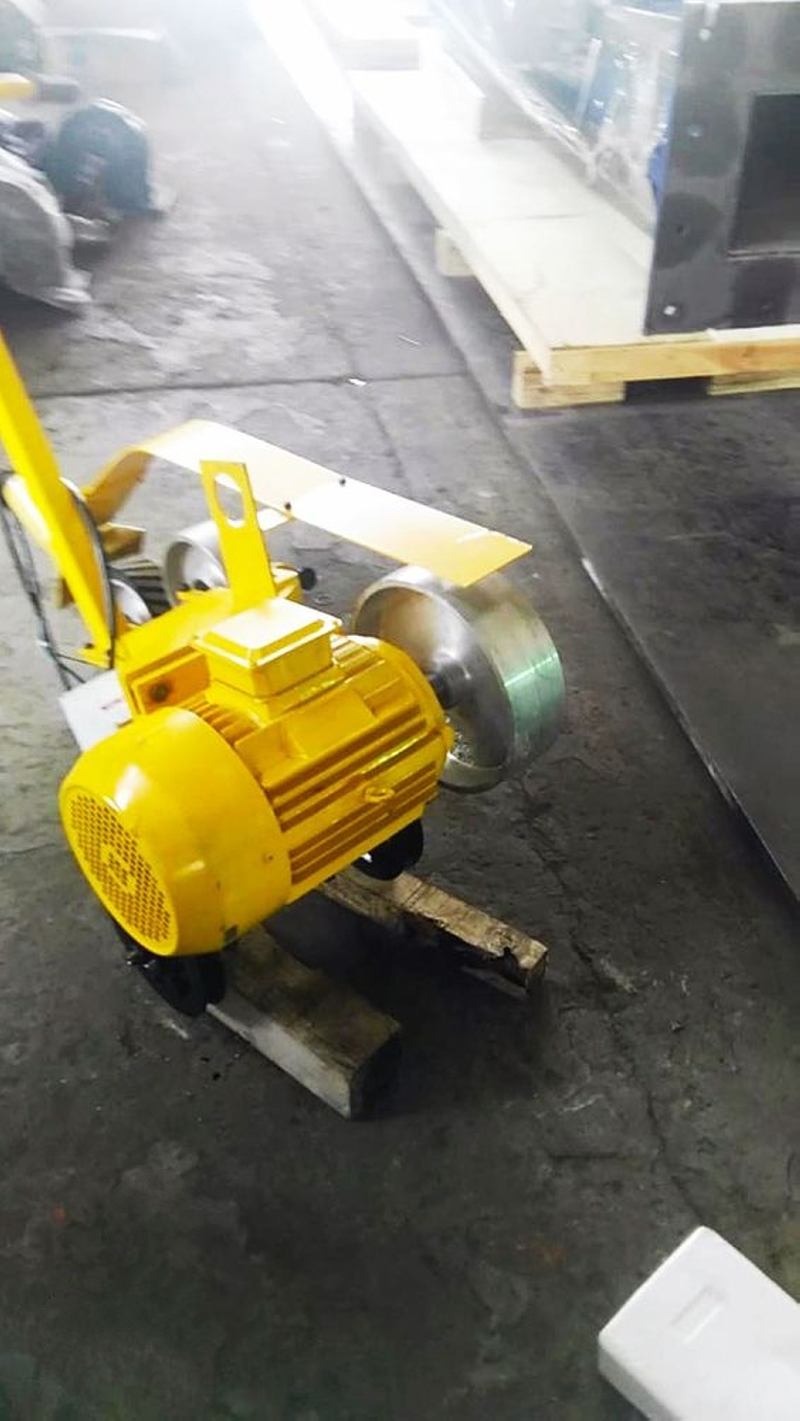

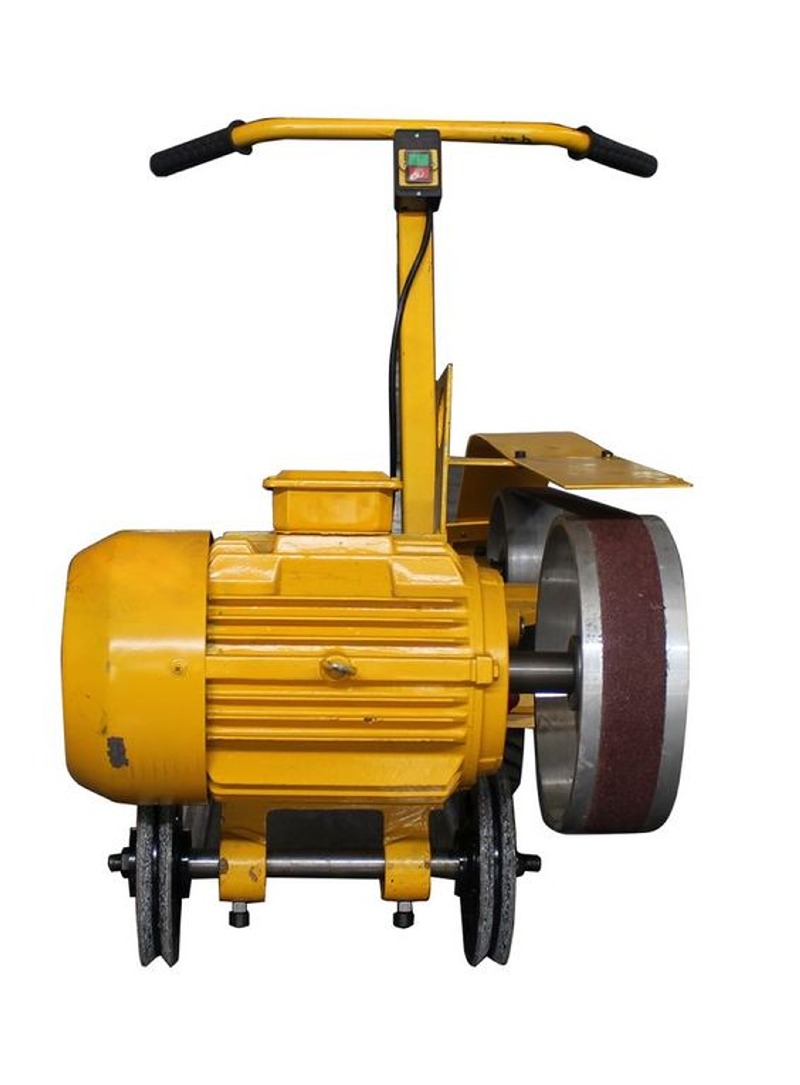

SMG Trolley Belt Sander Demo Video
| Weight | 130 kg |
|---|
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
