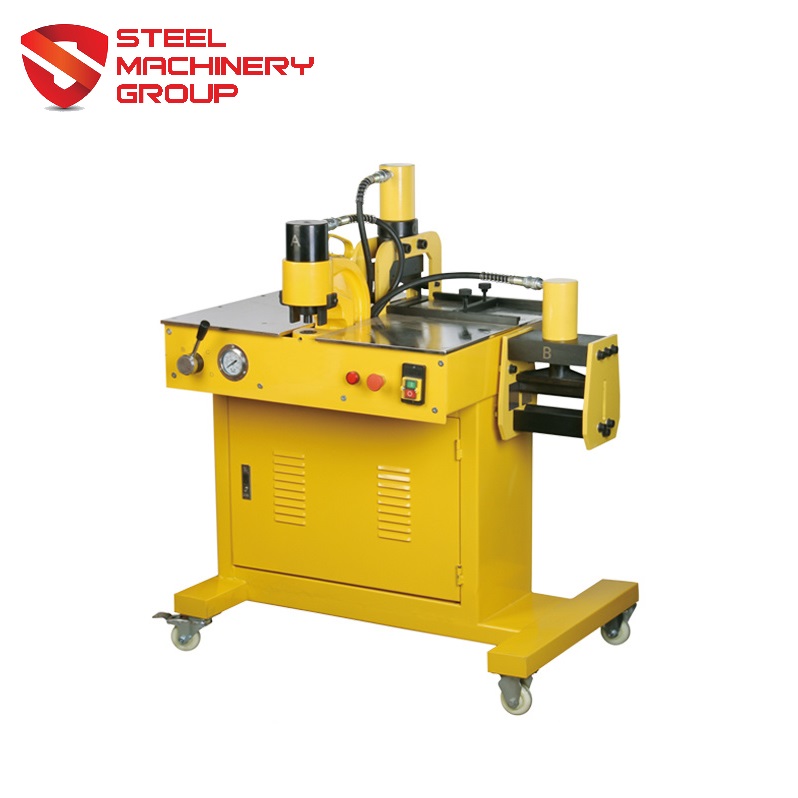

SMG 2000XA Busbar Processing Station
The SMG 2000XA Busbar Processing Station offers heavy cutting, punching and bending power for aluminum and copper rows.
$ 0.00 AUD
SMG 2000XA Busbar Processing Station Operation Manual
As the ultimate solution for seamless busbar processing, the versatile multi-function busbar processing station cuts, punches, and bends copper bars with ease. Perfect for professional switchboard manufacturing and maintenance workshops. Designed to be easily relocated as required, this machine has been built for efficient, low-maintenance operation.
| SMG 2000XA Busbar Processing Station | |
| Functions | Cutting, Punching and Bending |
| Input Voltage/Control Voltage | Single Phase 50Hz, 220V |
| Rating Working Oil Pressure | 700 kgf /cm2 (Over Pressure Safety Valve Setting Value) |
| Outlet Force of Busbar Cutter | 20 ton |
| Busbar Cutting Capability | Copper Bus Bar / Aluminum Bus Bar) 200 × 12 mm |
| Outlet Force of Puncher | 35 ton |
| Distance Between Hole Center and Busbar Edge | 110 mm |
| Punching Capability: Copper Busbar / Aluminum Busbar | Φ6-Φ20.5, Max.Thickness:12 mm |
| Standard Assembled Punching Dies | Φ10.5, Φ13.8, Φ17.5, Φ20.5 mm |
| Outlet Force of bender | 20 ton |
| Horizontal Bending Capability | 200 × 12 mm |
| Weight | 270 kg |
| Dimension of Moveable Workbench | 63 × 78 × 84 cm |
| Machine Dimension | 1135 × 805 x 1335 mm |
Please check our SMG 2000XA Busbar Processing Station Videos Below
SMG 2000XA Busbar Processing Station Video
SMG 2000XA Busbar Processing Station Demo
- copper busbar bending machine
- copper busbar beding machine
- novopress busbar bending machine
- 3 in 1 busbar machine
- copper busbar punching machine
- busbar punching machine
- Busbar bending machine
- Copper busbar machine
- Busbar cutting machine
- Hydraulic busbar machine
- Busbar processing machine
- Busbar fabrication machine
- Busbar assembly machine
- CNC busbar machine
- Busbar shearing machine
- Portable busbar machine
- Busbar chamfering machine
- Busbar end milling machine
- Busbar leveling machine
- Busbar inspection machine
- Busbar marking machine
- Automatic busbar machine
- Busbar slotting machine
- Busbar drilling machine
- Busbar punching and shearing machine
- Busbar bending and punching machine
- Multi-station busbar machine
- Busbar crimping machine
- Busbar wrapping machine
- Busbar trunking machine
- Busbar processing center
- Busbar fabrication line
- Busbar automation equipment
- Busbar handling system
- Busbar production machinery
- Busbar manufacturing equipment
| Weight | 270 kg |
|---|---|
| Dimensions | 113.5 × 80.5 × 135.5 cm |
