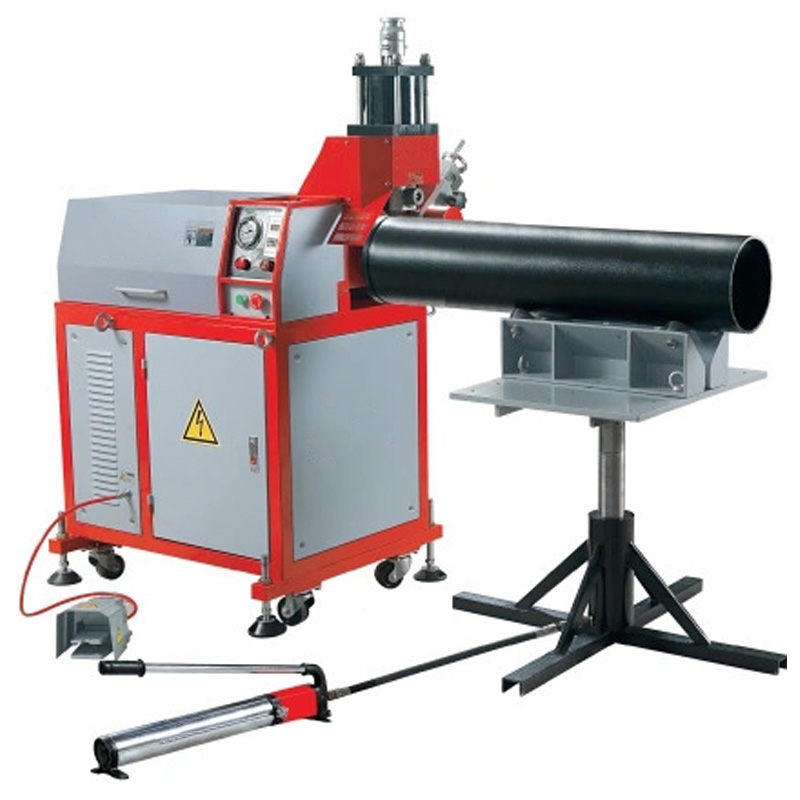

SMG RG24 Automatic Roll Grooving Machine 8 – 24″

  • The machine is designed for grooving 8″-24″ (219 – 630mm) steel pipe.
  • Equipped with an automatic hydraulic control system and auto-feeding to improve efficiency.
  • Semi-automatic process, more precise grooves and more efficient.
  • Designed auto delay function to make every single groove depth very precise.
  • Equipped solid wheels at the bottom of the machine, it is easy to transport in different building sites.

$ 0.00 AUD

Specifications

Model SMG RG24
Capacity 8 – 24″ (⌀219 – ⌀630) SCH40 Steel Pipe
Phrase 3 Phase
Voltage 415vac
Frequency 50/60 HZ
Max. Wall Thickness 13mm
Output 15rpm
Gross Weight G.W: 490 kgs
Packing Dimension 107 x 85 x 168cm
98 x 98 x 63cm



Standard Equipment Includes:

  • Pipe Stand
  • Knurl wheel ⌀219 – ⌀325mm
  • Knurl wheel ⌀377 – ⌀426mm
  • Knurl wheel ⌀480 – ⌀630mm
  • Pinch roller ⌀219 – ⌀530mm
  • Pinch roller ⌀630mm
  • Foor switch
