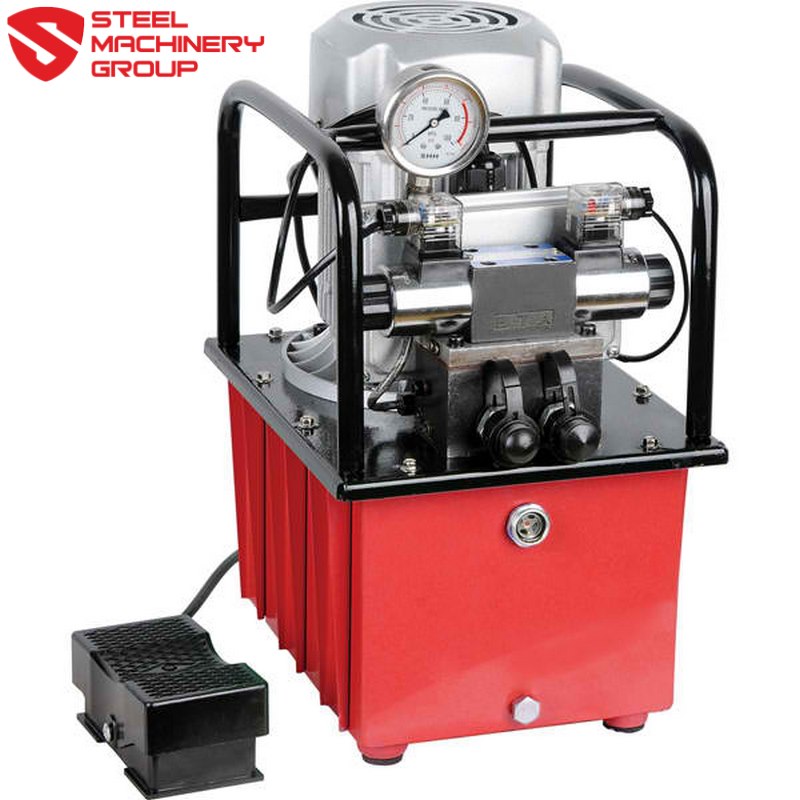

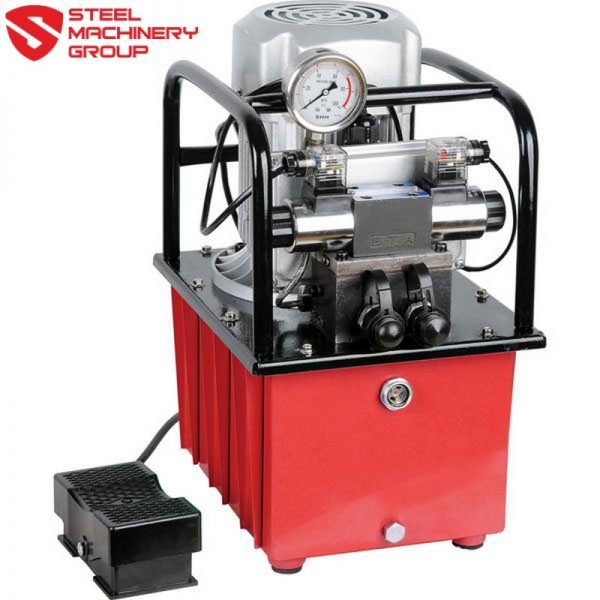

Smg Zcb 65b Electric Oil Pump
,

SMG ZCB-65B Electric Oil Pump

SMG ZCB-65B Electric Oil Pump

Check Stock / Request Quote / Ask Questions

$ 1,660.00 AUD

Features

  1. Electromagnetic valve control allows you to withdraw piston from any position.
  2. High and low 2-way speed for quick oil output.
  3. The pressure safety valve automatically releases pressure at 700kg/cm to prevent over pressure damage.
  4. High pressure is for driving piston and low pressure is for piston reset (CTE-25AD).
  5. Oil pipe fitted with quick coupling, which could be ordered at any length.
  6. Oil Pipe coupling fitted with PT3/8″ thread.

Specifications

MODEL WORKING PRESSURE
(MPa)		 CURRENT
(L/min)		 VOLTAGE
(vac)		 POWER
(kw)		 OIL CAPACITY
(L)		 WEIGHT
(kg)		 DIMENSIONS
(mm)
SMG ZCB-65B 63 0.6 240 or 415 0.75 8 24 270 x 290 x 490
SKU: SMG-EP-ZCB-65B Categories: , Tag: Brand:
