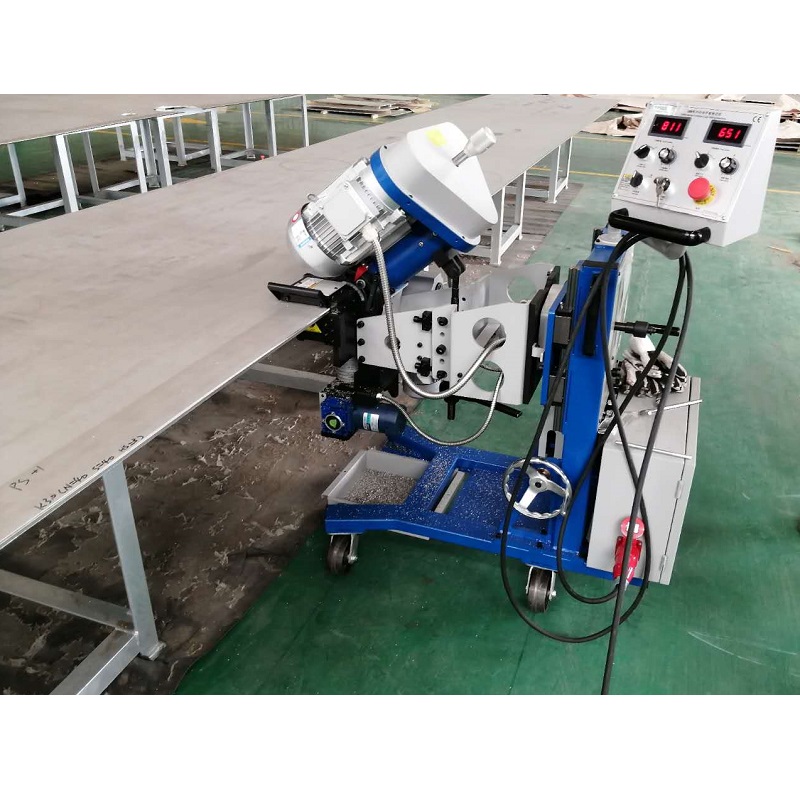

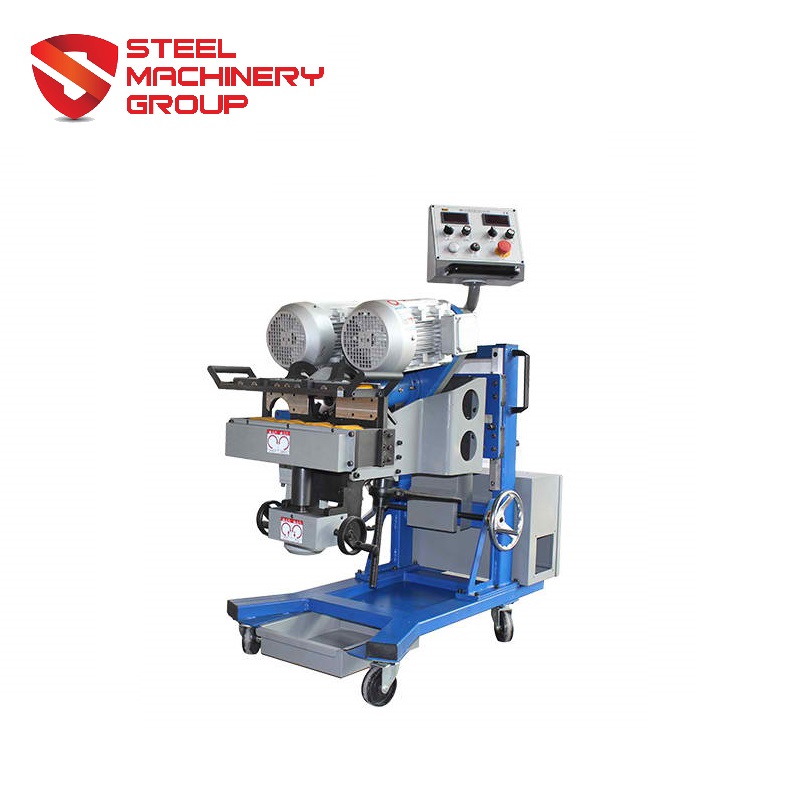

SMG Rapid-Edge 80DM Double Sided Milling Type Plate Beveling Machine
The SMG Rapid-Edge 80DM Double Sided Milling Type Plate Beveling Machine is designed to provide high- quality, efficient results for plate preparations.
This machine is designed to work with a wide range of plate sizes and is fitted with an indexable rotating head for double-sided plate beveling. With an extra-large beveling capacity for 80mm plate, the maximum bevel face width is 70mm and an adjustable beveling angle from 0-60 degrees.
Capital Machinery supplies a large range of Plate Beveling Machine in Australia. We offer top-quality brands and provide quality service for all your beveling requirements.
$ 12,176.94 USD
Specifications
| Model No. | SMG Rapid-Edge 80DM Double Sided Milling Type Plate Beveling Machine |
| Power Supply | AC 415V 50HZ |
| Total Power | 4800 W |
| Variable Motor Speed | 750-1050 r/min |
| Feed Rate Speed | 0 -1500mm/min |
| Clamp Thickness | 6 – 80mm |
| Maximum Clamping Width | ＞ 100mm |
| Minimum Process Length | ＞ 300mm |
| Bevel Angle Range | 0 – ± 60 degrees adjustable |
| Single Pass Bevel Width | 20 mm |
| Maximum Bevel Width | 70 mm |
| Milling Cutter Tool Diameter | φ 80mm |
| Milling Tooling Cutting Inserts | 6 pcs |
| Adjustable Worktable Height Range | 700 – 760mm |
| Travel Space | 800 x 800mm |
| Weight | N.W 325 kgs G.W 385 kgs |
| Packaging Size | 1200 x 750 x 1300mm |
Includes:
- 1 Milling cutter head
- 2 Sets of Cutting Inserts
| Weight | 385 kg |
|---|
