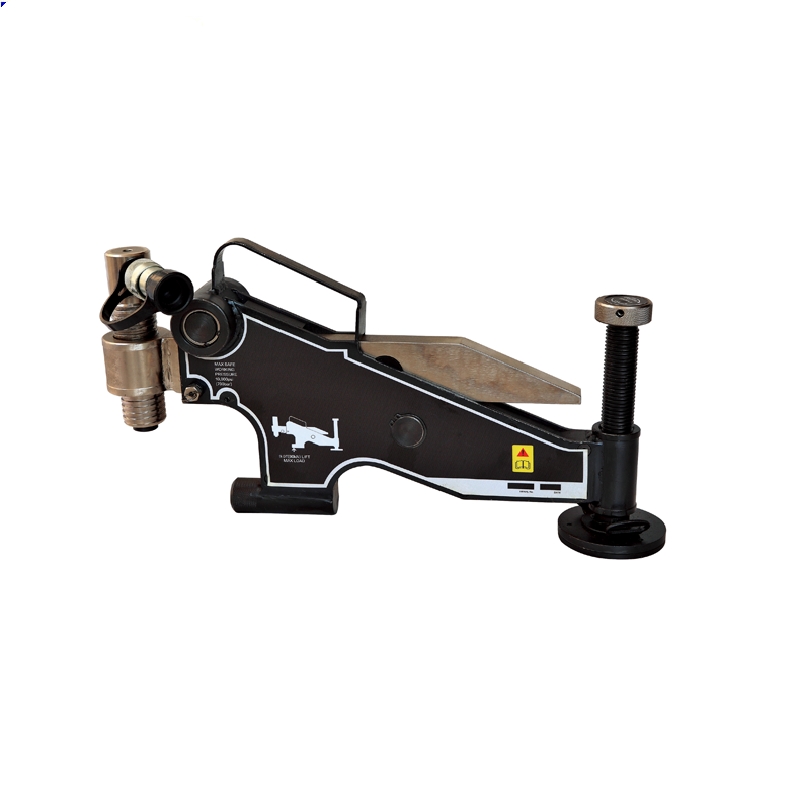

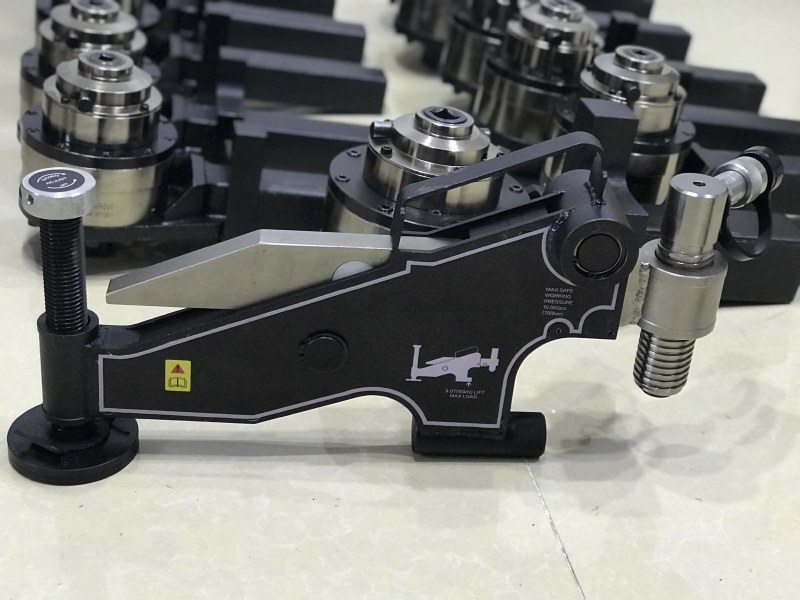

SMG F990H Flange Alignment Tool

The SMG F990H Flange Alignment Tool is a specialized and robust tool specifically designed for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is well-suited for a variety of industrial applications.

Check Stock / Request Quote / Ask Questions

$ 3,123.88 USD

The SMG F990H Flange Alignment Tool is a specialized and robust tool specifically designed for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is well-suited for a variety of industrial applications.

Operating at a maximum working pressure of 700bar, it ensures precise alignment and connection of flanges. Its primary function is to rectify any linear or rotational misalignment, guaranteeing optimal performance and reliability.

The SMG F990H Flange Alignment Tool is versatile and can be used both offshore and onshore. It is a valuable tool for complex engineering projects and demanding industrial tasks, delivering accurate and efficient results

Specification:
  • Max Bolt Size:16-31.5mm
  • Cap:1-9ton(10-90kN)
  • Max Working Pressure:700bar
  • Suitable for offshore and onshore application
  • Designed for large diameter high-pressure flanges
  • Rectifies linear or rotational misalignment

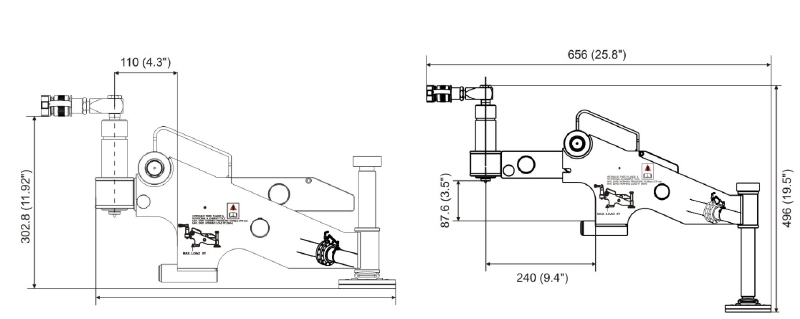

Minimum (upper) and Maximum (lower) Extension in mm (inch)
Smg F990m Flange Alignment Tool Min Max 1
Steel Machinery Group Flange Alignment Tool Series Table
Model
Capacity Ton/kN
Operation Type
Min. Bolt Size (mm)
Flange Thickness (mm)
Reaction Force 2 Max (Ton)
Bole Hole Diameter Min (mm)
Misalignment Min (mm)
N.W (kg)
SMG F110M
1 Ton 10 kN Mechanical
Mechanical
0.63 / 16
0.55-3.29/14-82
1
16
0
3
SMG F440M
4 Ton 40kN Mechanical
Mechanical
0.95 / 24
1.18-5.23/30-133
4
25
0
9
SMG F990M
9 Ton 90kN Mechanical
Mechanical
1.24 / 31.5
3.66-9.00/93-228
9
35.5
0
16
SMG F990H
9 Ton 90kN Hydraulic
Hydraulic
1.24 / 31.5
3.66-9.00/93-228
9
35.5
0
16
SMG F990S
9 Ton 90kN Set (w/ Cylinder and Pump)
Hydraulic
1.24 / 31.5
3.66-9.00/93-228
9
35.5
0
16
