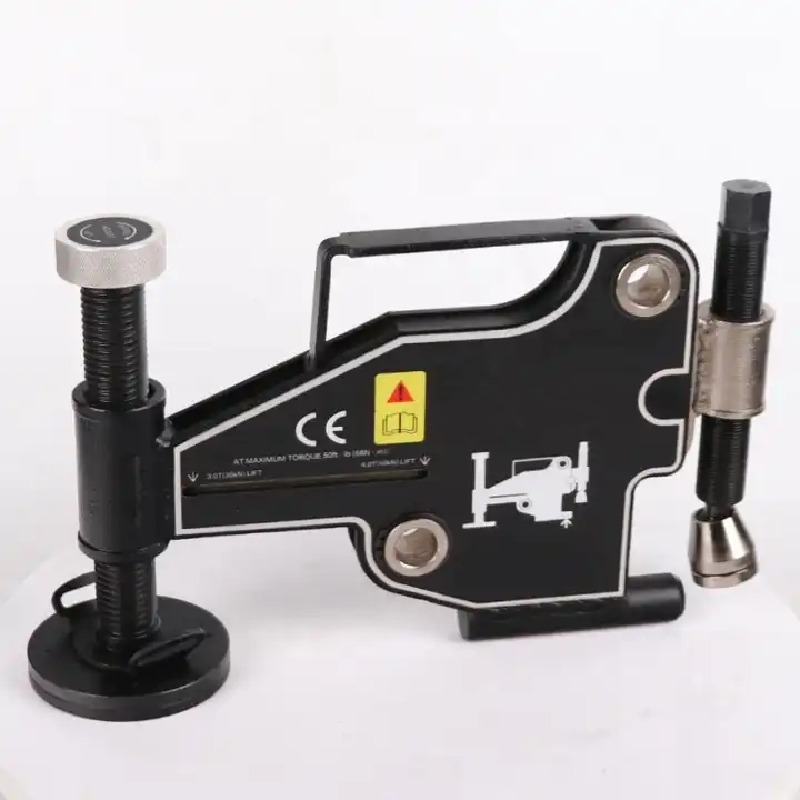

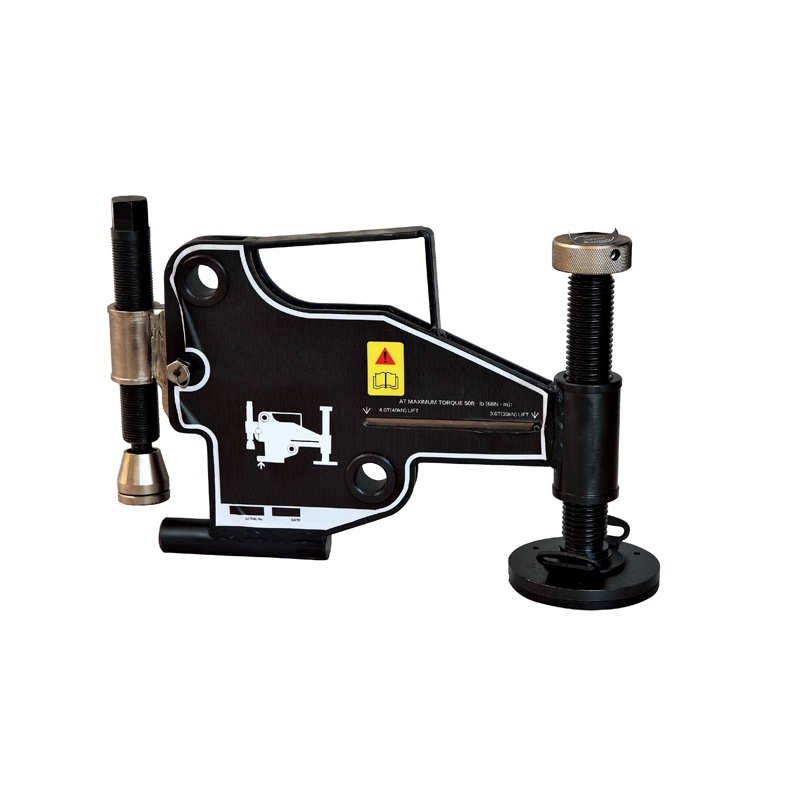

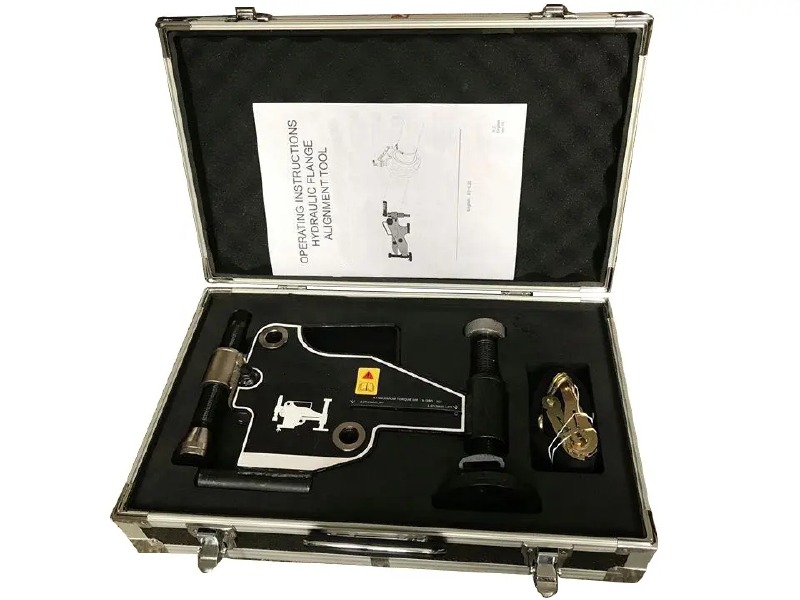

SMG F440M Flange Alignment Tool
The SMG F440M Flange Alignment Tool is a specialized and robust tool specifically designed for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is well-suited for a variety of industrial applications.
$ 3,724.04 AUD
The SMG F440M Flange Alignment Tool is a specialized and robust tool specifically designed for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is well-suited for a variety of industrial applications.
Operating at a maximum working pressure of 700bar, it ensures precise alignment and connection of flanges. Its primary function is to rectify any linear or rotational misalignment, guaranteeing optimal performance and reliability.
Whether you’re working on complex engineering projects or demanding industrial tasks, the SMG F440M Flange Alignment Tool is an indispensable tool that will deliver accurate and efficient results.
Specification:
- Max Bolt Size:16-31.5mm
- Cap:1-9ton(10-90kN)
- Max Working Pressure:700bar
- Suitable for offshore and onshore application
- Designed for large diameter high-pressure flanges
- Rectifies linear or rotational misalignment

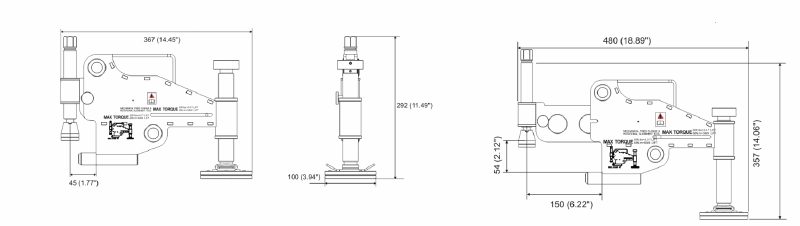

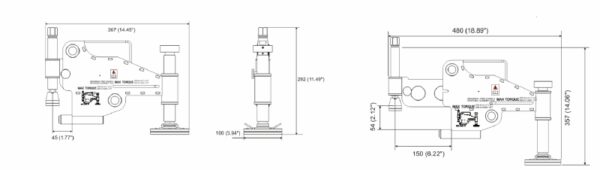

Minimum (upper) and Maximum (lower) Extension in mm (inch)
Steel Machinery Group Flange Alignment Tool Series Table
|
Model
|
Capacity Ton/kN
|
Operation Type
|
Min. Bolt Size (mm)
|
Flange Thickness (mm)
|
Reaction Force 2 Max (Ton)
|
Bole Hole Diameter Min (mm)
|
Misalignment Min (mm)
|
N.W (kg)
|
|
SMG F110M
|
1 Ton 10 kN Mechanical
|
Mechanical
|
0.63 / 16
|
0.55-3.29/14-82
|
1
|
16
|
0
|
3
|
|
SMG F440M
|
4 Ton 40kN Mechanical
|
Mechanical
|
0.95 / 24
|
1.18-5.23/30-133
|
4
|
25
|
0
|
9
|
|
SMG F990M
|
9 Ton 90kN Mechanical
|
Mechanical
|
1.24 / 31.5
|
3.66-9.00/93-228
|
9
|
35.5
|
0
|
16
|
|
SMG F990H
|
9 Ton 90kN Hydraulic
|
Hydraulic
|
1.24 / 31.5
|
3.66-9.00/93-228
|
9
|
35.5
|
0
|
16
|
|
SMG F990S
|
9 Ton 90kN Set (w/ Cylinder and Pump)
|
Hydraulic
|
1.24 / 31.5
|
3.66-9.00/93-228
|
9
|
35.5
|
0
|
16
|
| Weight | 9 kg |
|---|---|
| Dimensions | 49 × 37 × 19 cm |
Based on 0 reviews
