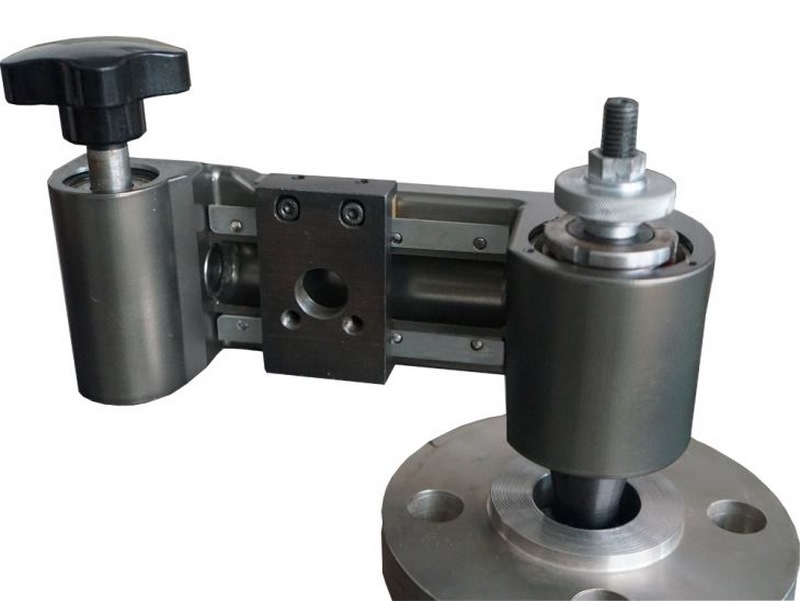

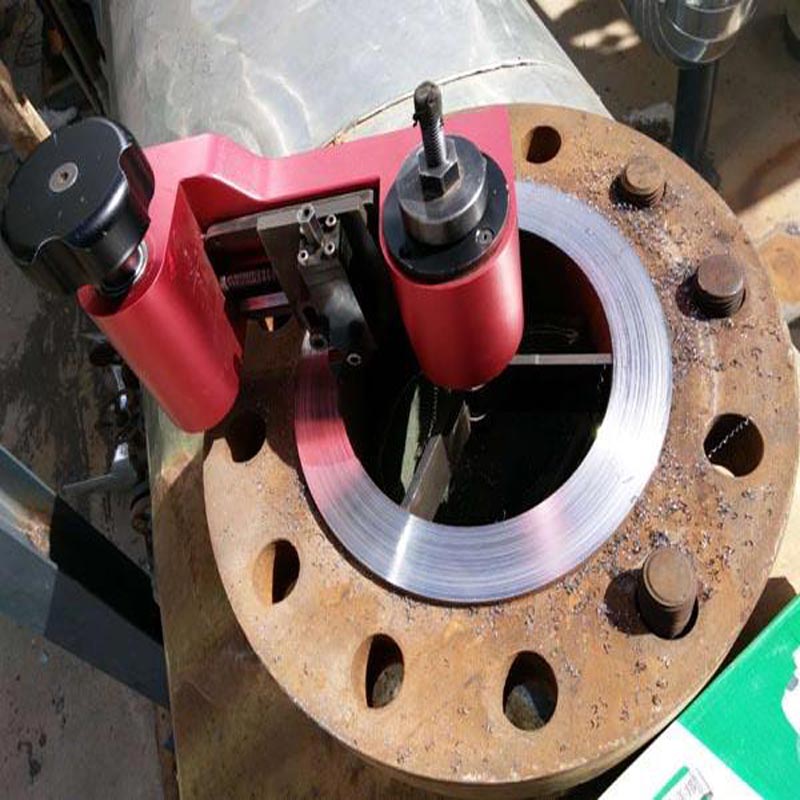

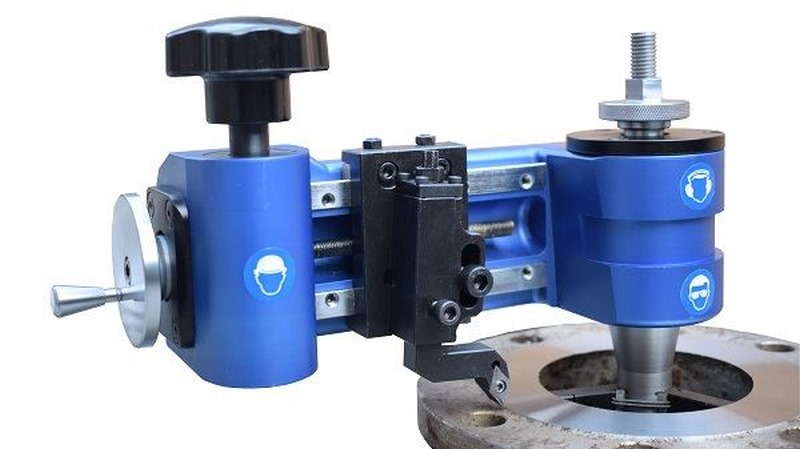

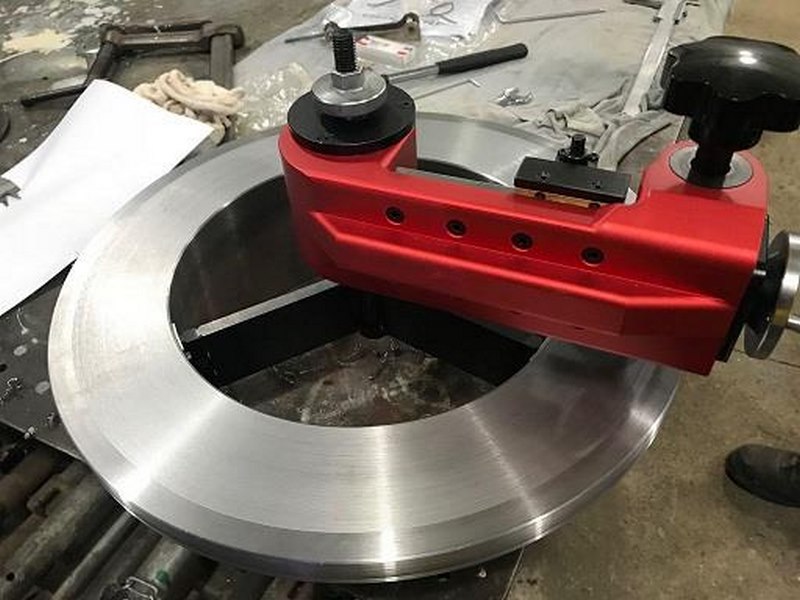

SMG F350 Portable Flange Facing Machine

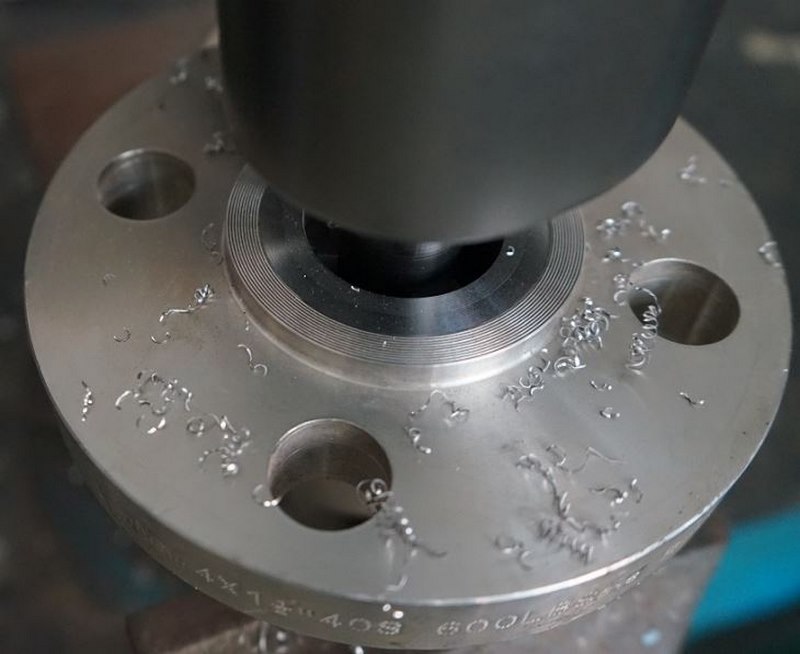

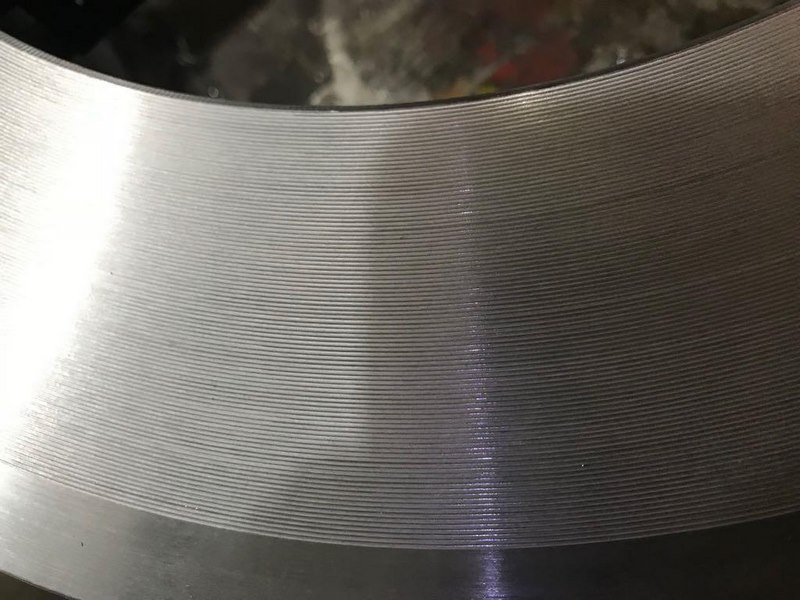

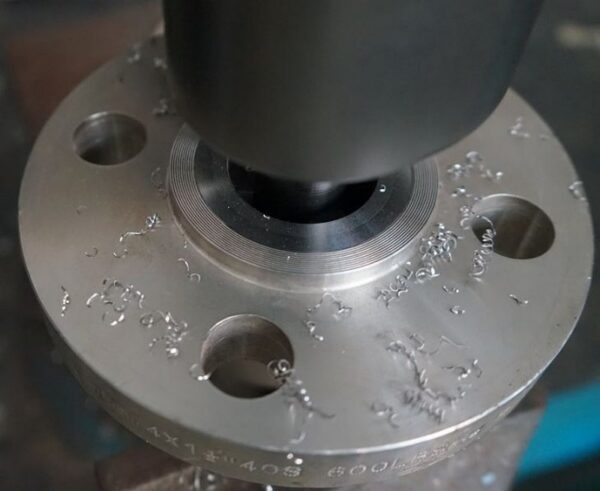

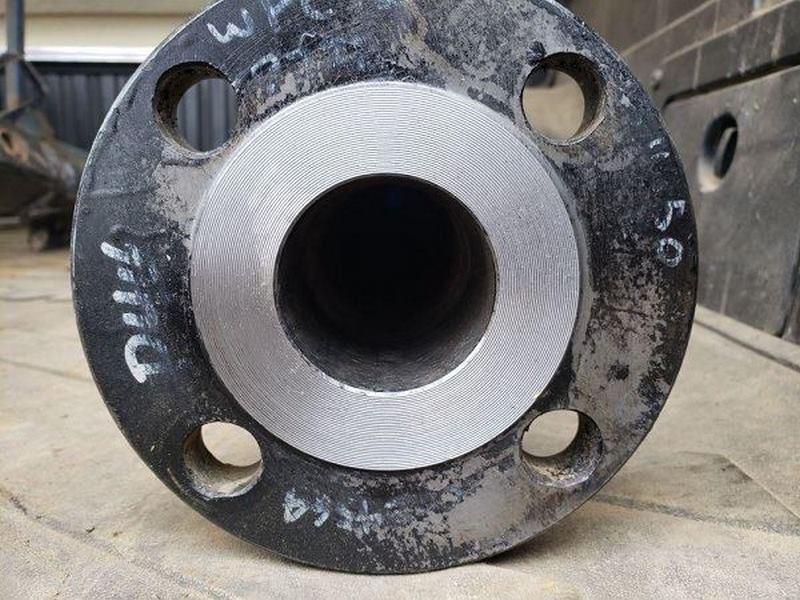

SMG F350 Portable Flange Facing Machine is manually operated and is a very using onsite tool designed for refacing of flat face flanges of various materials, providing a gramophone finish thus to create optimum gasket contact and gasket seating conditions.

Check Stock / Request Quote / Ask Questions

$ 6,588.30 AUD

SMG F350 Portable Flange Facing Machine Video


SMG F350 Portable Flange Facing Machine.mp4 from Capital Machinery Sales on Vimeo.



Facing diameter: 25.4-350mm(1-13.78”)
Material: Aluminum

SMG F350 Portable Flange Facing Machine is manually operated and is a very using onsite tool designed for refacing of flat face flanges of various materials, providing a gramophone finish thus to create optimum gasket contact and gasket seating conditions.

Technical Specification
Facing Diameter:
Min Facing Diameter 1 inches 25.4 mm
Max Facing Diameter 13.78 inches 350mm
ID Mounting Diameter
Min I.D. Mount 1 inches 25.4 mm
Max I.D. Mount 10 inches 252 mm
Stroke:
Tool Feed Stroke 2.76 inches 70 mm
Tool Post Swivel Angle + / – 30⁰
Overall length 12.5 inches +/- 320mm
Height from flange face upwards 8 inches +/- 200mm
Minimum swing diameter 18 inches 457.2mm
Approximately Operational Weight 15.43 lbs 7 kg
Approximately Shipping Weight 24 lbs 11 kg
Approximately Shipping Dimensions

Length x Width x Height

 7.8 x 11.8 x 15.7 inches 200 x 300 x 400 mm



Due to the integrated feed spindle , which is taking care of the cutting tool feed ,whiles turning the machine and keeping the feed knob , the required surface finish is obtained .

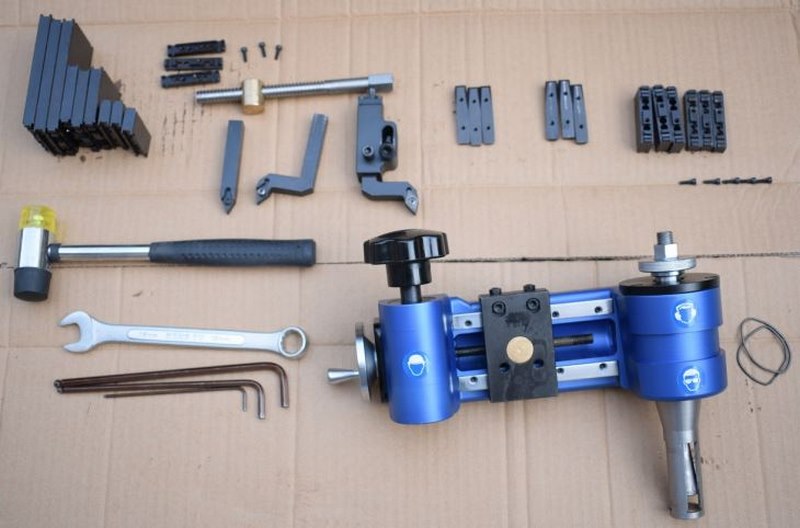

SMG F350 Portable Flange Facing Machine tool is supplied with 2 feed spindles. Standard the ASME B 16.5 spindle is mounted . And the other spindle is in the case . Both spindles are engraved on the feed nut .
