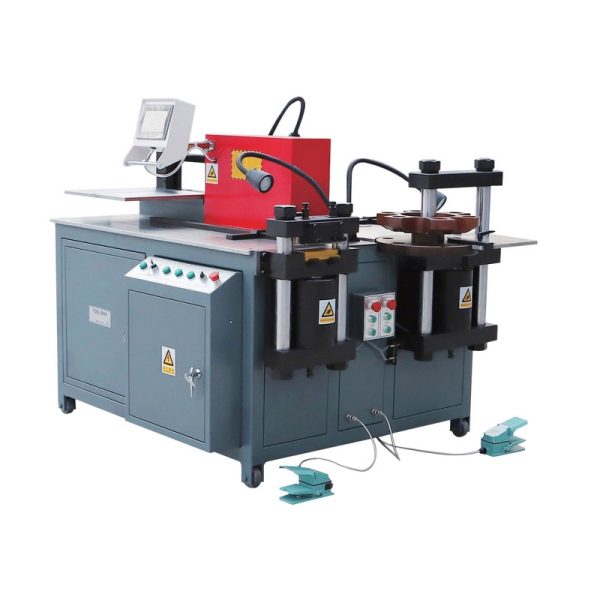

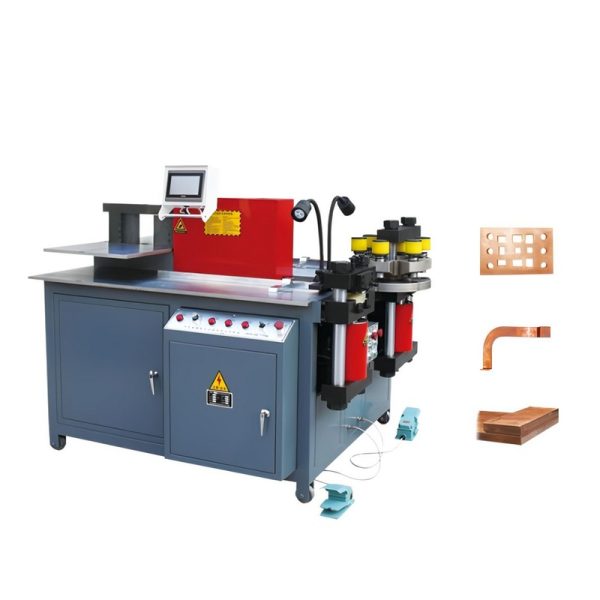

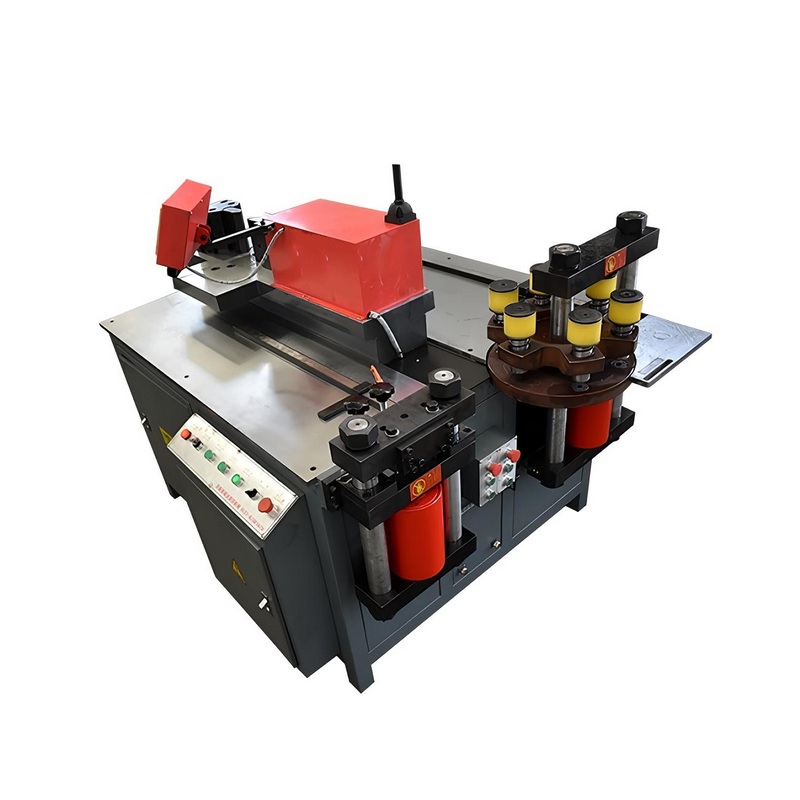

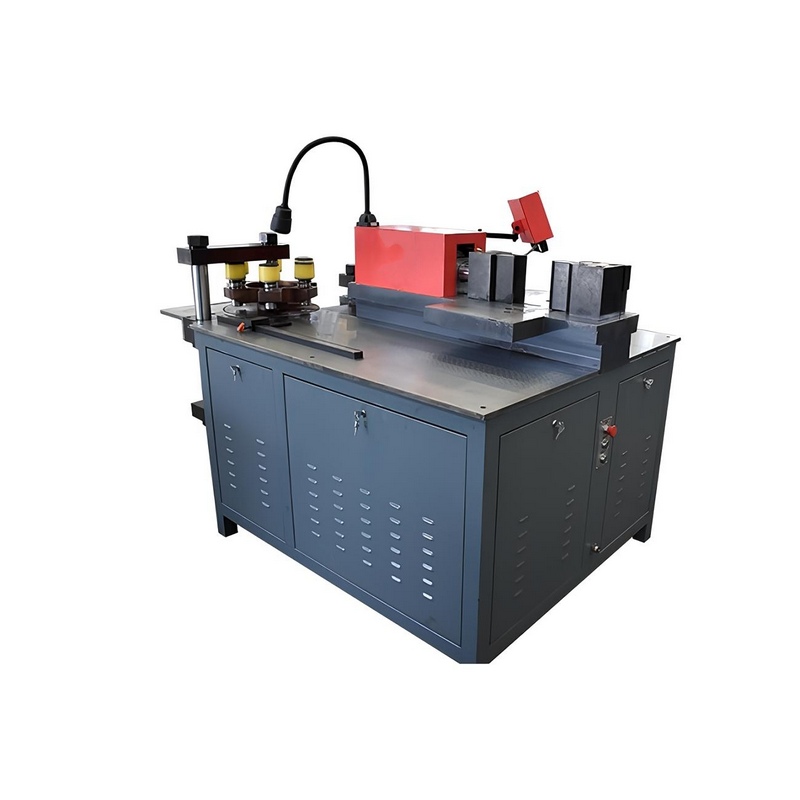

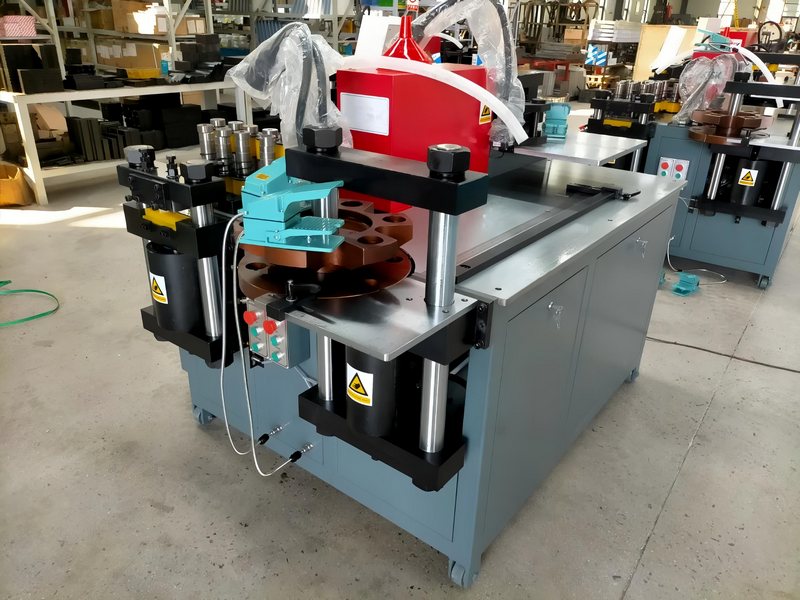

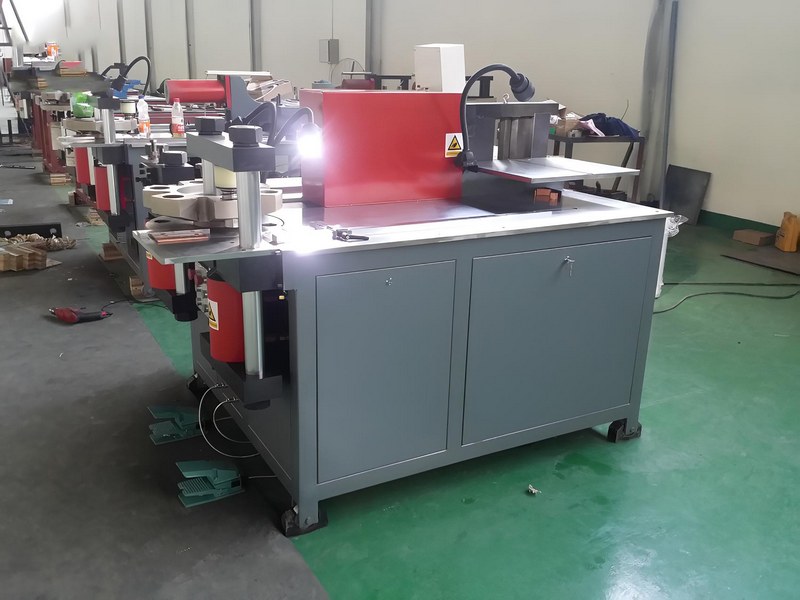

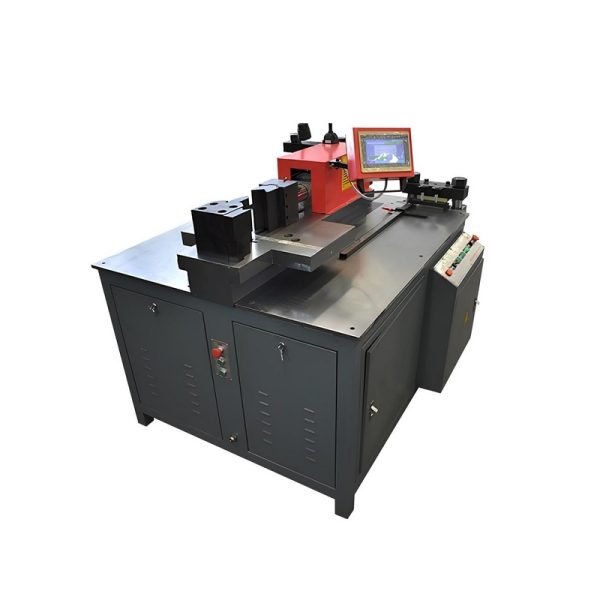

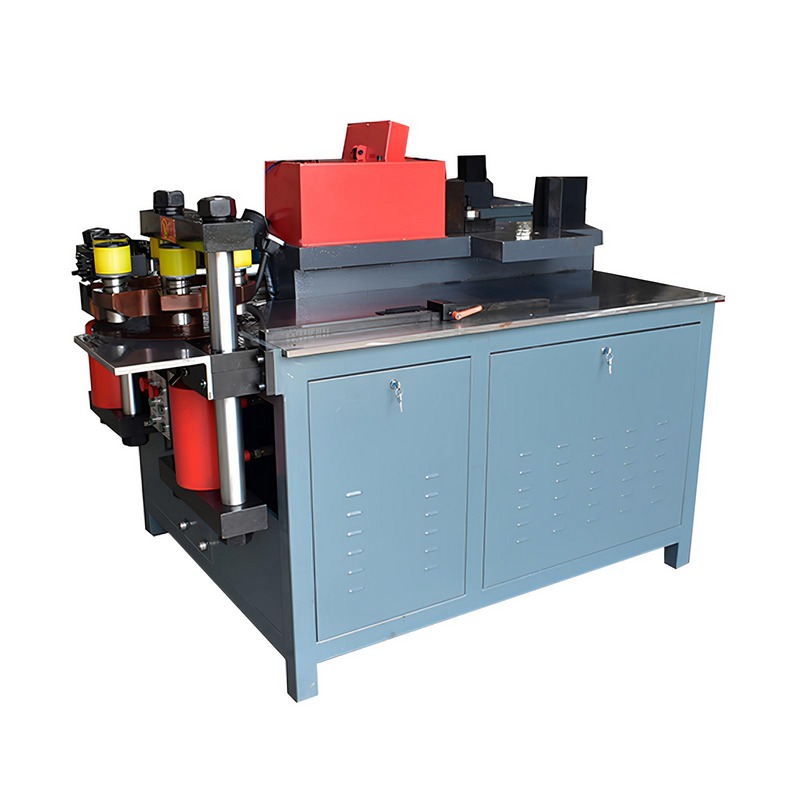

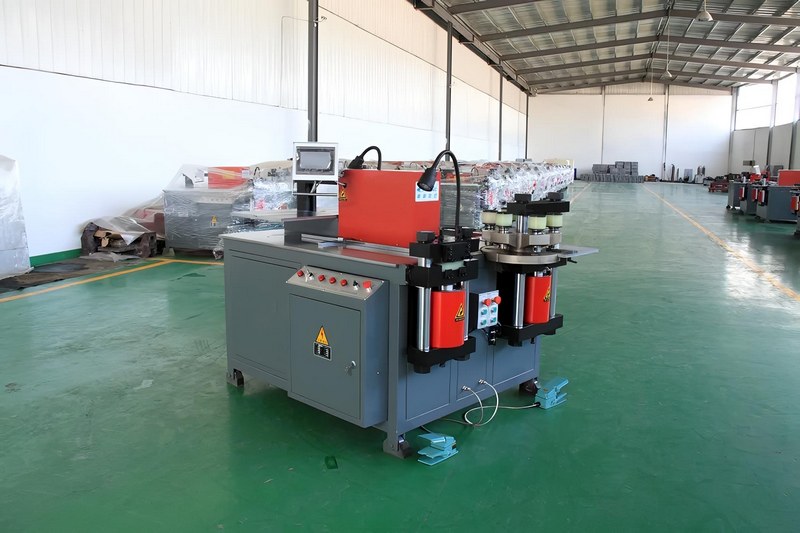

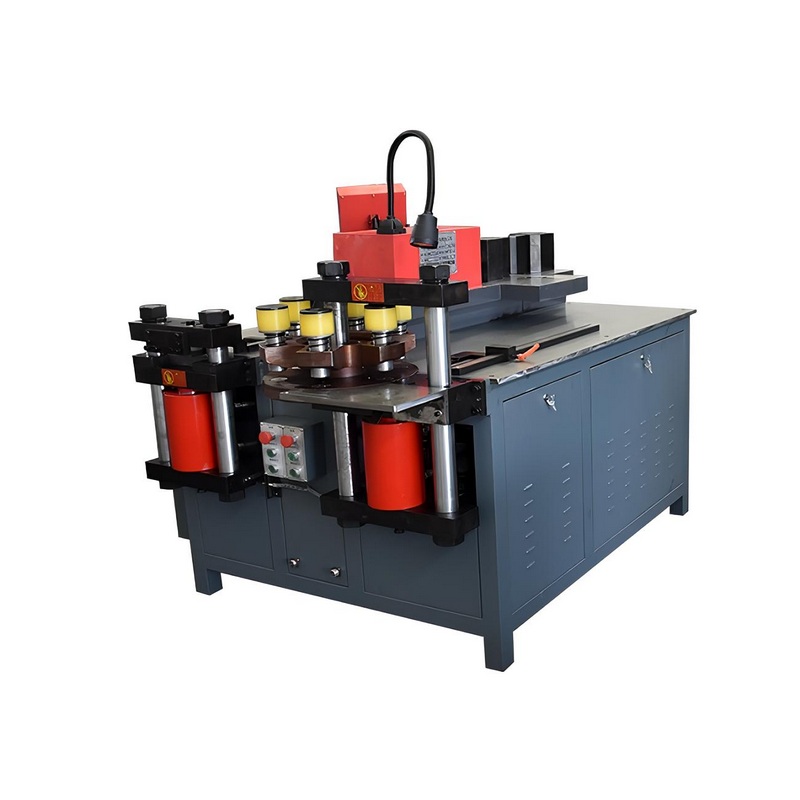

SMG 8000XA NC Three in One Busbar Processing Station

The SMG 8000XA NC Three in One Busbar Processing Station is designed to perform punching, shearing, and bending as well as many other supposed operations required to complete your processing needs.

The cleaver design allows set-up flexibility streamlining the processing both boosting production efficiency and reducing handling time significantly. The bending unit is equipped with a quality PLC control system ensuring precision and stability when processing copper and aluminium busbars of varying specifications.

The user-friendly operator panel increases productivity, the processing station is capable of shearing, punching (circular and oblong holes), flat/vertical bending, and knurling copper and aluminium busbars.

With specialised tooling, the busbar machine can also perform flat pressing, embossing, cable connector processing, cutting, flat crushing and other operations for custom application requirements.

Main Features of SMG 8000XA NC:

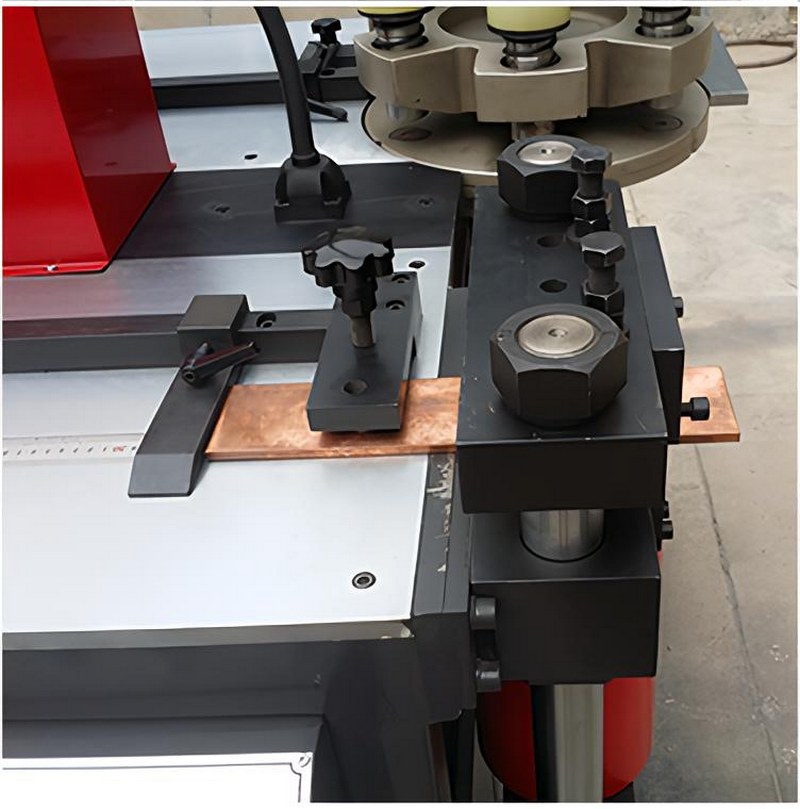

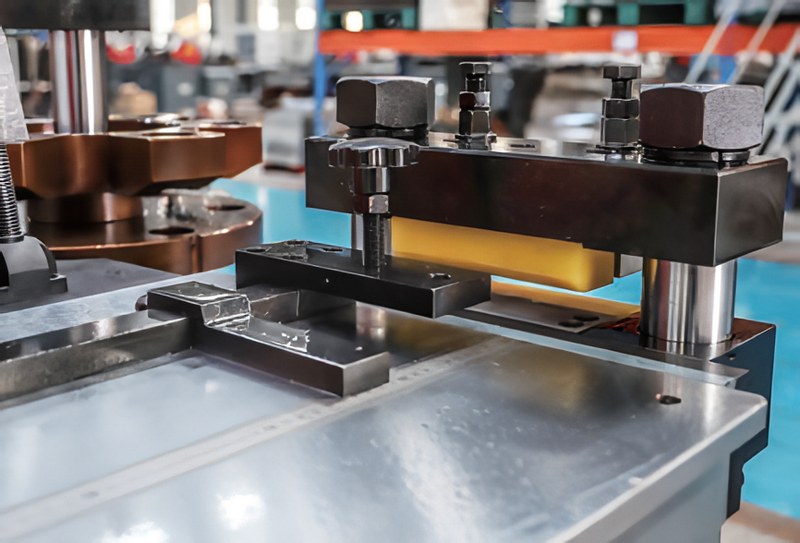

• Superior Shearing Capabilities:
  • Our innovative shearing station design delivers consistently precise bur-free cutting, enhancing both the look and quality of your work and minimalising material waste.

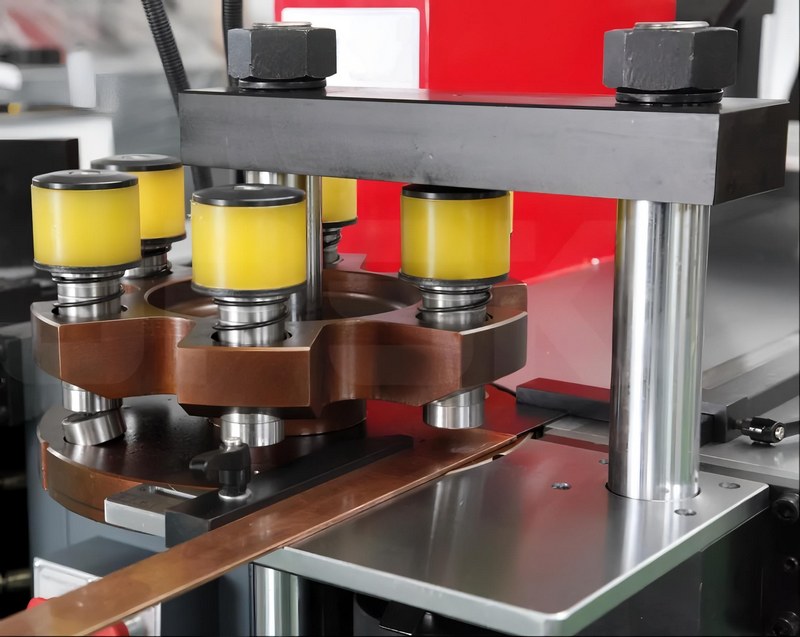

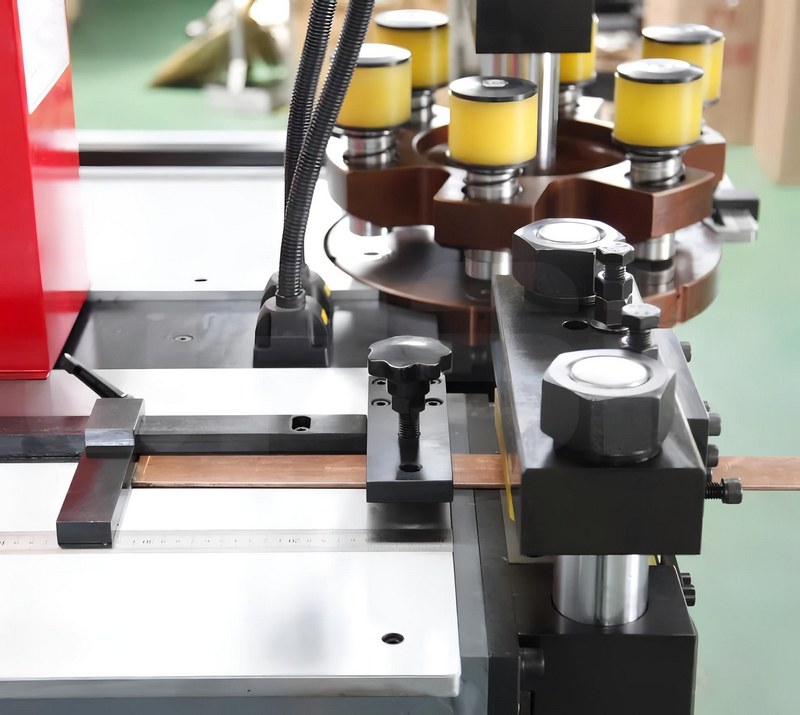

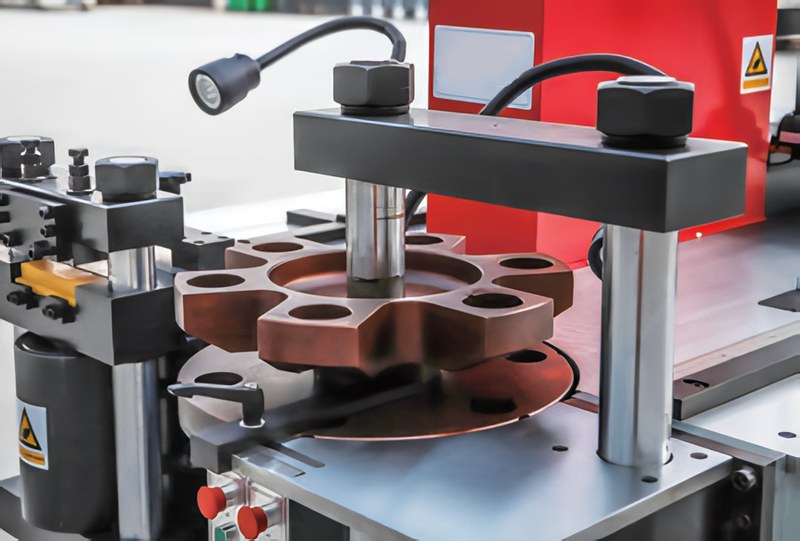

• Indexable Punching Unit:
  • The integration of an indexable tool carousel enhances the machine’s user-friendliness and significantly amplifies productivity. This results in a notable reduction in operator setup time and errors, promoting a more efficient operational environment.

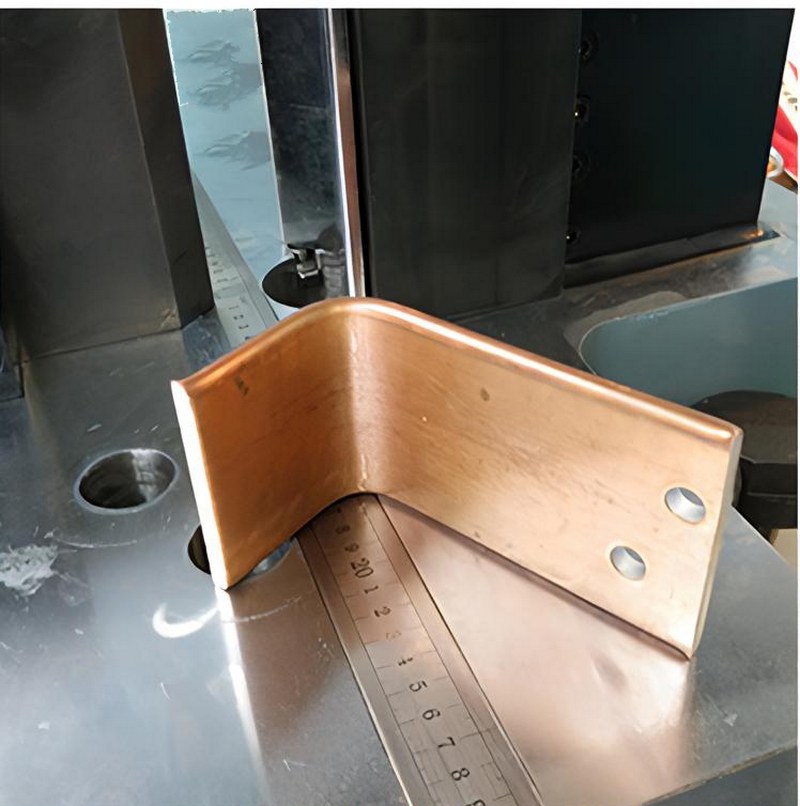

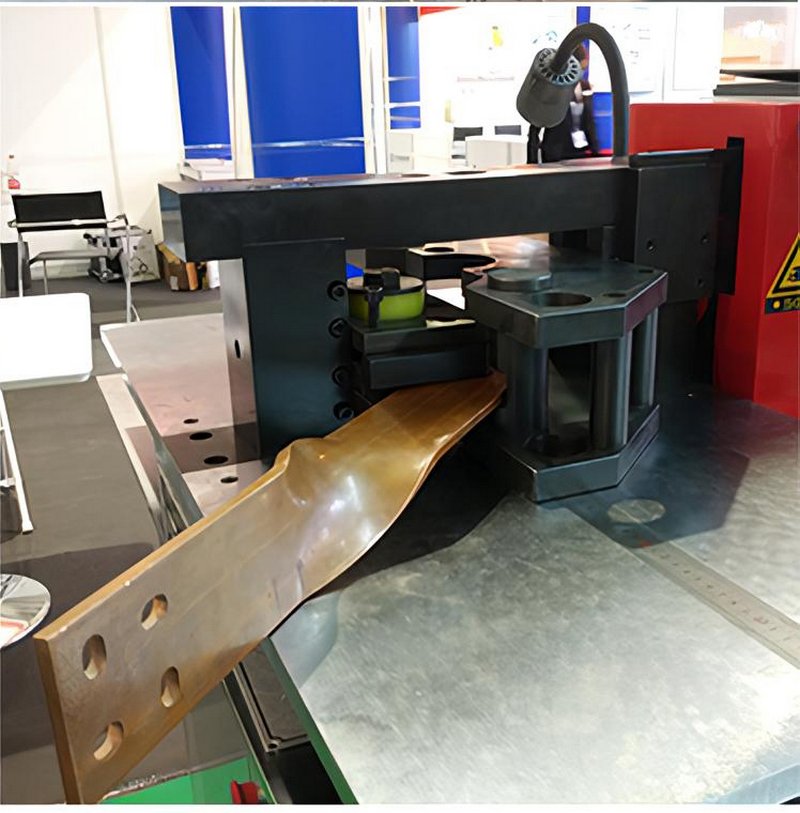

• Intelligent Bending Precision:

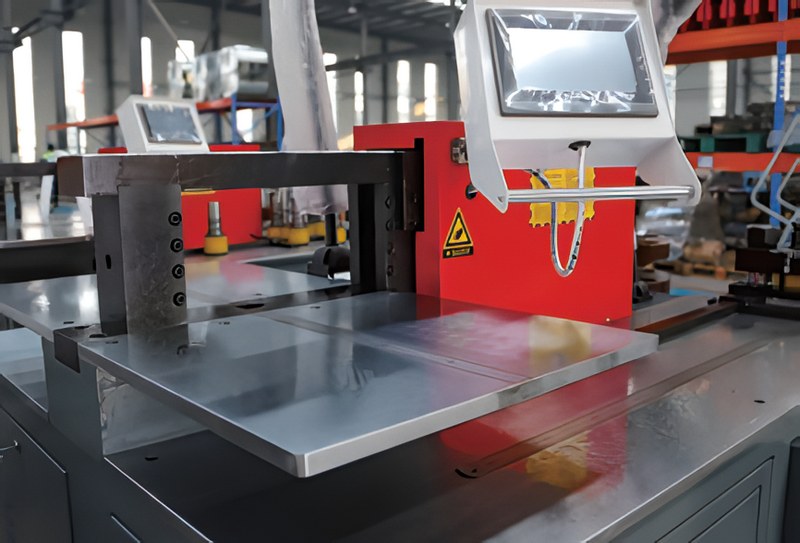

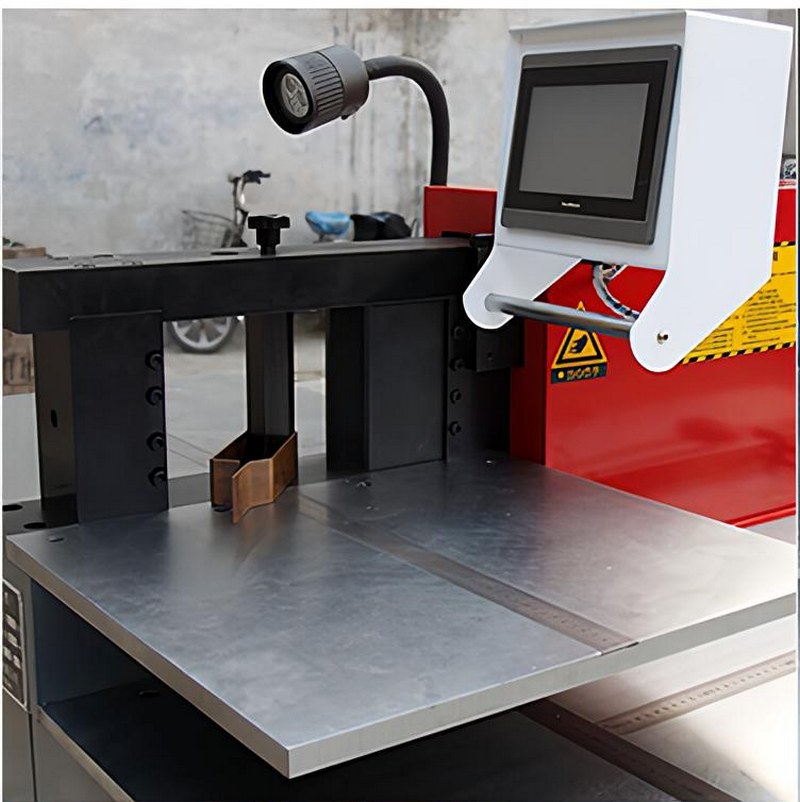

  • You can easily adjust for flat or vertical bends using the NC controller’s touch screen. Plus, precise specifications can be inputted such as busbar thickness, angles, or complex bends like Z bending with an accuracy of ±1 degrees
  • Using a two-level work table allows for working on three positions at once.
• Smart NC Control Data Management:
  • The NC controller utilises pre-inputted historical data to produce reusable program data, ensuring precision and uniform quality for all future batches.

The SMG 8000XA NC Busbar Processing Station is more than just equipment; it symbolizes an investment in precision, efficiency, and adaptability. Tailored to meet modern processing demands, it caters to those seeking to transition from slow, traditional methods to the swift, precise, and seamless era of busbar processing.

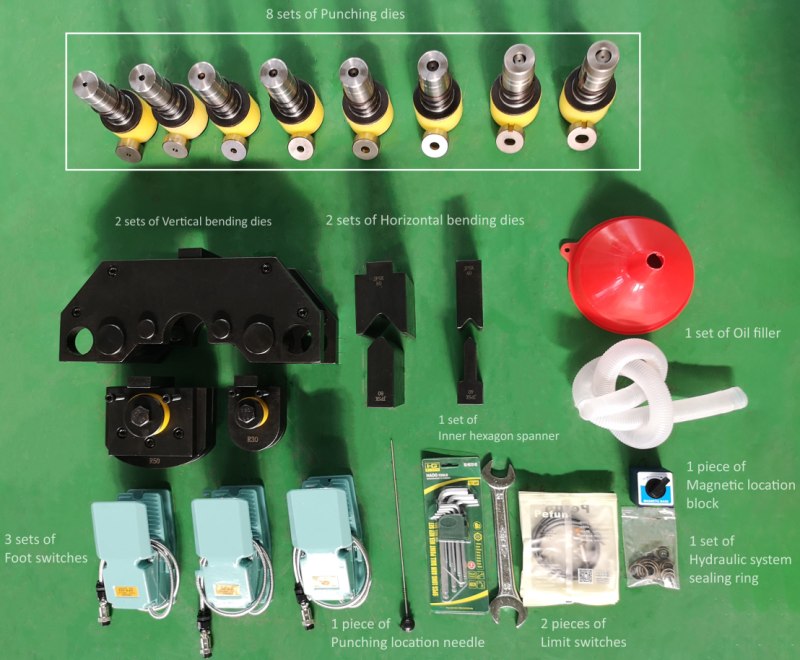

Standard Accessories

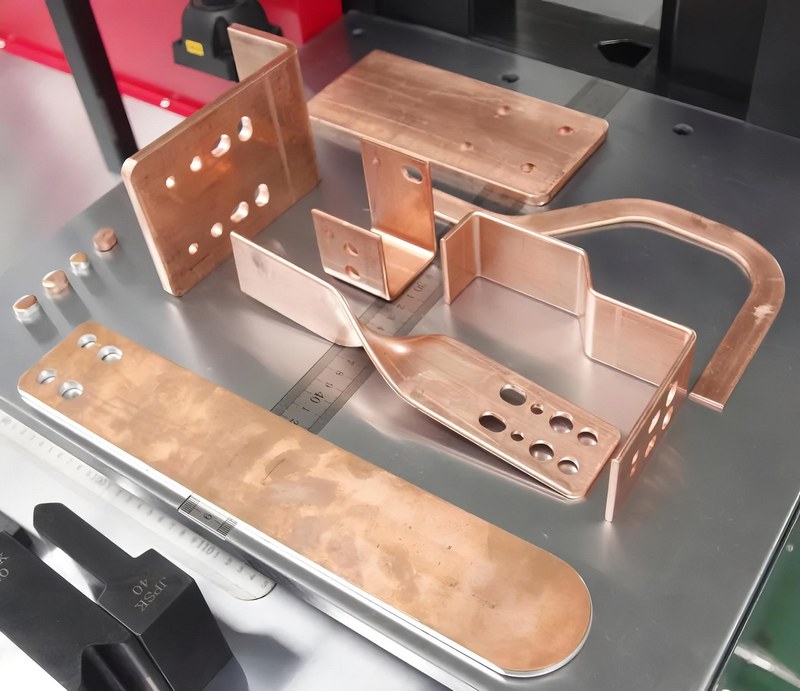

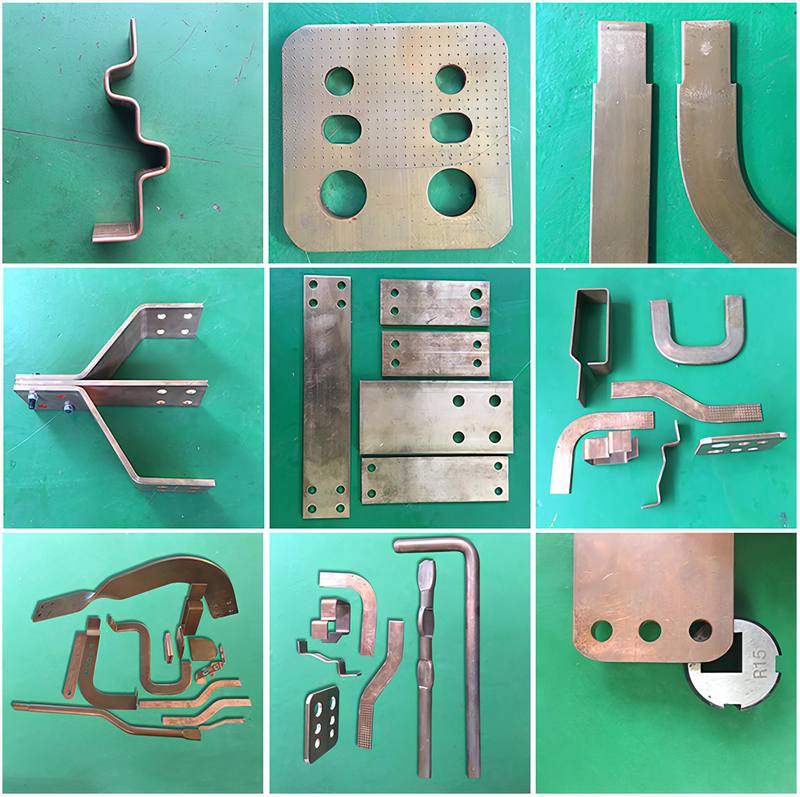

SMG 8000XA NC Sample Process:

Processing Details:

SMG XA NC Series Three in One Busbar Processing Station Video

Specification
