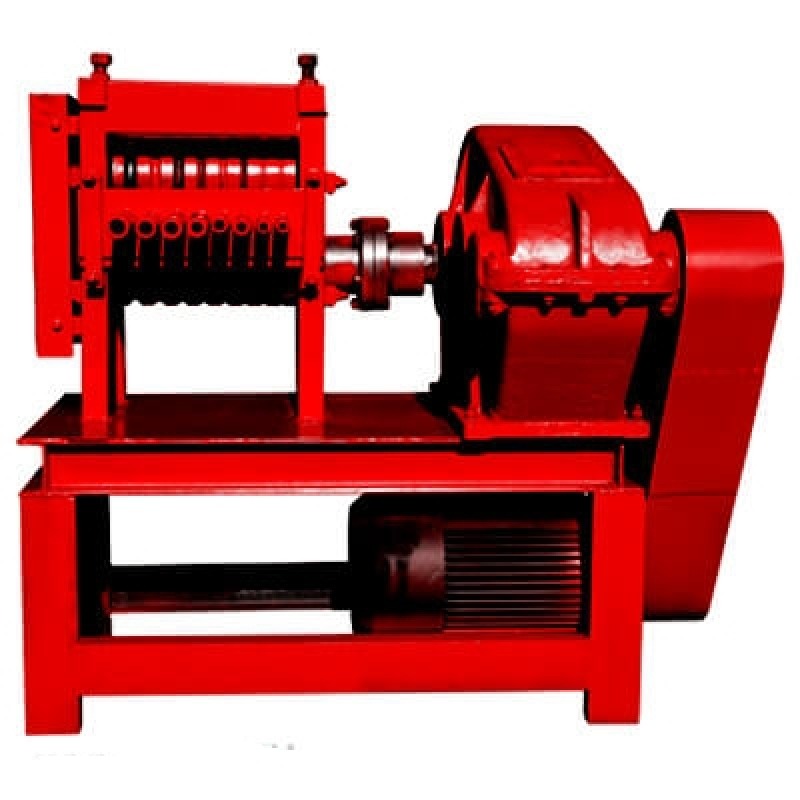

SMG RS10-25 Rebar Straightening Machine

The SMG RS10-25 Rebar Straightening Machine is designed to effortlessly straighten bent, twisted, or scrap bars with an impressive accuracy rate of over 90%. Its user-friendly operation involves inserting the scrap rod into a suitable channel, allowing the machine to automatically guide and straighten it. Covering a range from 10mm to 25mm through various holes and channels, this machine offers a simple and effective solution for rebar straightening needs.

$ 13,670.00 AUD

Watch SMG RS10-25 Rebar Straightening Machine Demo

The SMG RS10-25 Rebar Straightening Machine is designed to effortlessly straighten bent, twisted, or scrap bars with an impressive accuracy rate of over 90%. Its user-friendly operation involves inserting the scrap rod into a suitable channel, allowing the machine to automatically guide and straighten it. Covering a range from 10mm to 25mm through various holes and channels, this machine offers a simple and effective solution for rebar straightening needs.

How to SMG RS10-25 Rebar Straightening Machine, let’s introduce the machine composition as follows,

Smg Rs10 25 Rebar Straightening Machine Scrap Rebar Shapes

Any shapes of bent bar

Not only such shapes in the above picture, it can also straight any shapes of bent bar, scrap bar, most shapes of scrap bar

Smg Rs10 25 Rebar Straightening Machine Import Hole Smg Rs10 25 Rebar Straightening Machine Import Holes

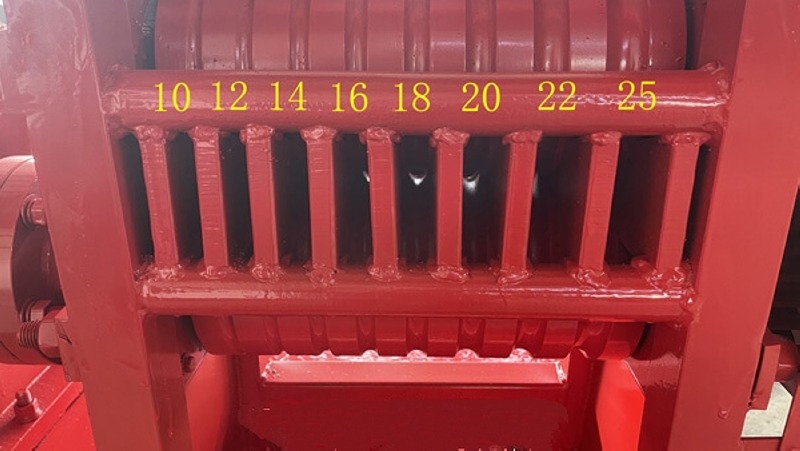

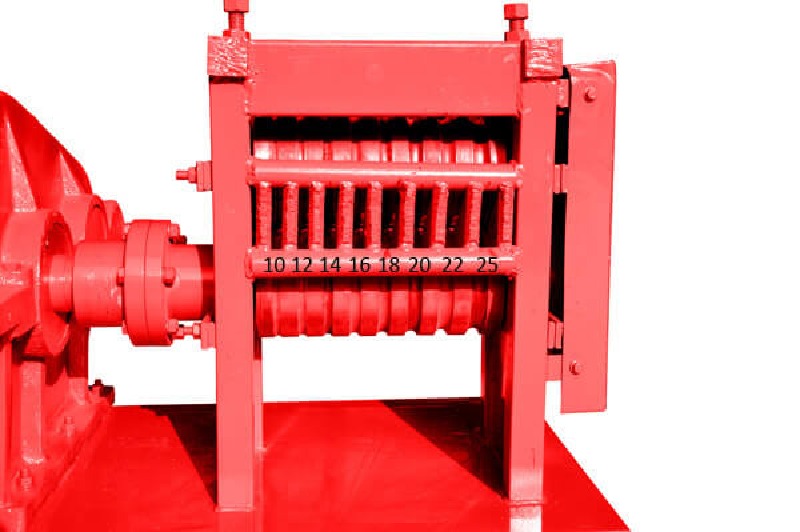

Import Hole – 10mm-25mm range

Import hole, import iron bar through these holes, it has 8 holes adapt to different size iron bar, there are 8 numbers which indicate hole size,10mm,12mm,14mm,16mm,18mm,20mm,22mm,25mm

Smg Rs10 25 Rebar Straightening Machine Export Hole

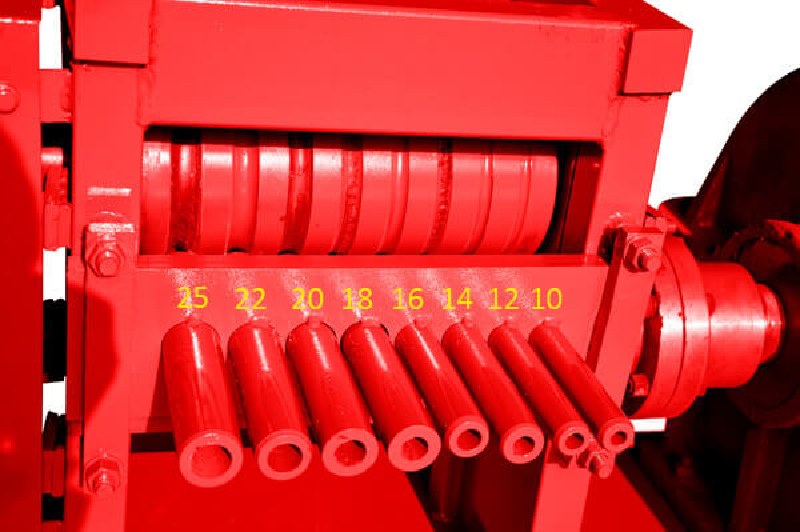

Export hole

Straighten iron bar will be exported through these holes, different with import hole, export hole has 8 pcs conduits, which also indicate hole size,

Smg Rs10 25 Rebar Straightening Machine Reduction Gears Smg Rs10 25 Rebar Straightening Machine Reduction Gears Box

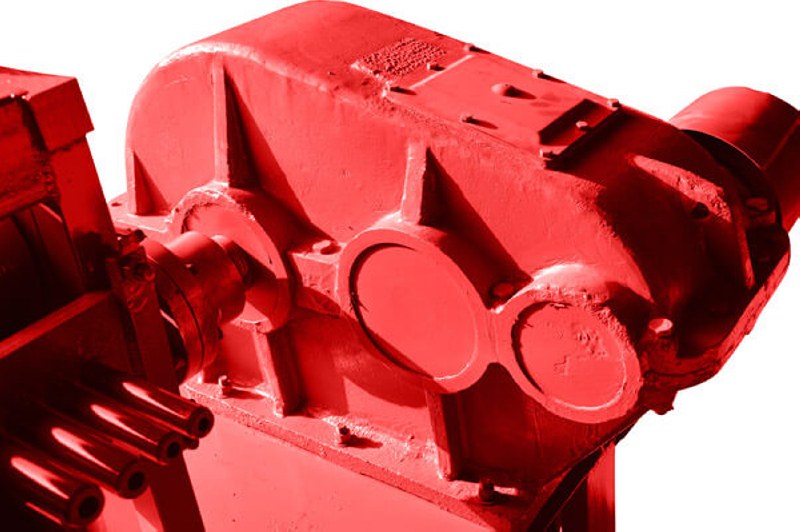

Reduction gears box

This is a powerful reduction gears box, it can pull and straight 25mm iron bar easily,

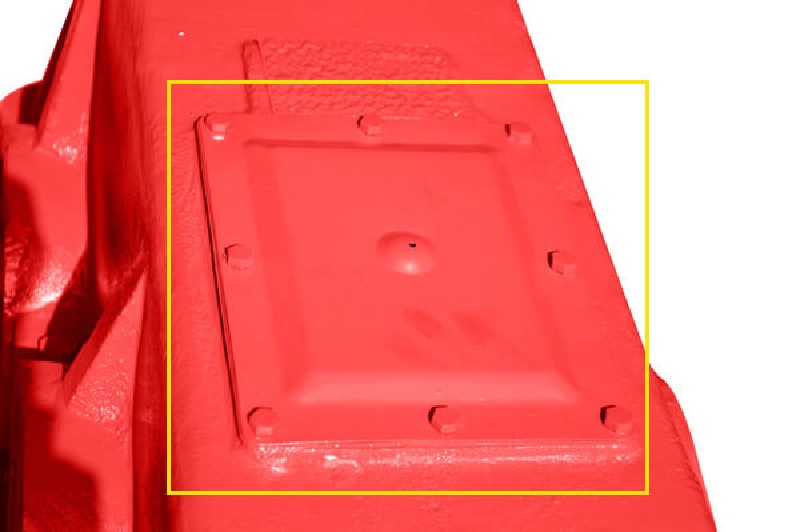

Smg Rs10 25 Rebar Straightening Machine Reduction Gears Oil Hole Cover

25kgs machine oil

Before using the machine, it needs 25kgs machine oil, open the square cover, and inject 25kgs machine oil to keep gears working in lubricating state

Smg Rs10 25 Rebar Straightening Machine Electric Motor Gray Smg Rs10 25 Rebar Straightening Machine Electric Motor

15Kw electric motor

This machine fixed with a 15kw electric motor, three phase, 380V or any other voltage as you  eed, we supply customized electric motor. Connect power line to this square box

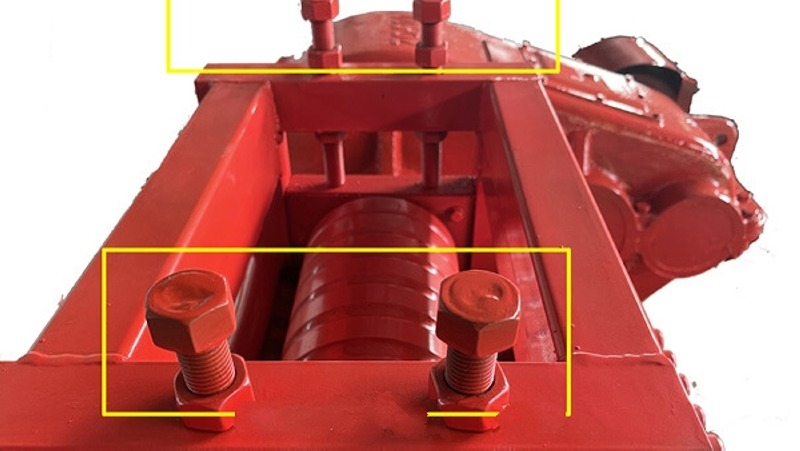

Smg Rs10 25 Rebar Straightening Machine Bolts

Press Bolts

4 bolts used for press the rollers

Smg Rs10 25 Rebar Straightening Machine Rollers

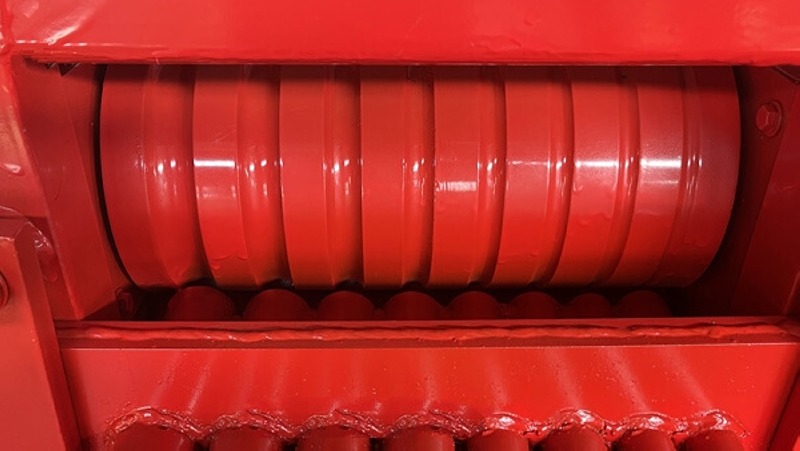

Rollers

Anti-wear treatment, longlife time

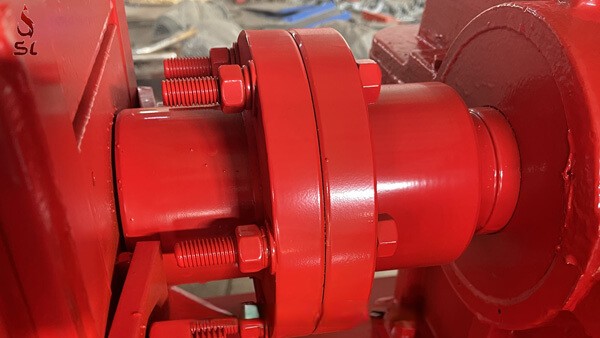

Smg R10 25 Transmission Shaft

Transmission Shaft

Strong transmission shaft

Smg Rs10 25 Rebar Straightening Machine Plywood Case

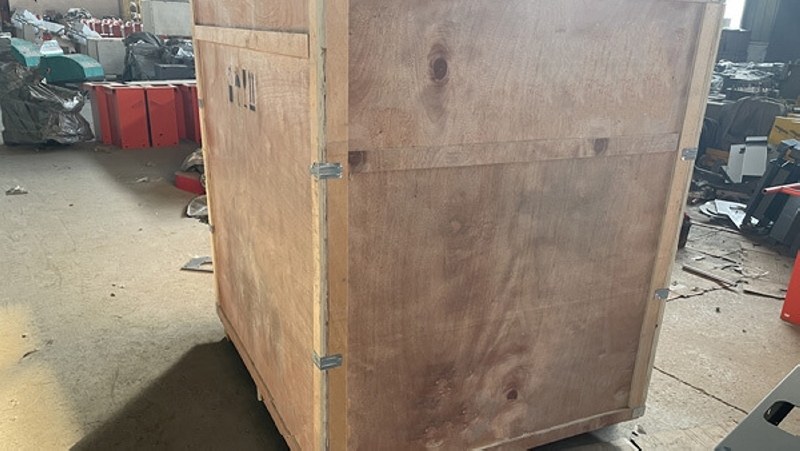

The Package
  • Plywood case, avoiding solid wood problems
  • Strong for shipping,
SMG RS10-25 Specifications
Model SMG RS10-25
Round bar 10~25mm
Rebar 10~25mm
Speed ≥20m/min
Power 15KW
Voltage 415V Three Phase
Gross Weight 850Kg
Net Weight 800Kg
Dimension 145*110*133cm
